12 x 10 Electrical Enclosure

Product Information

Specification

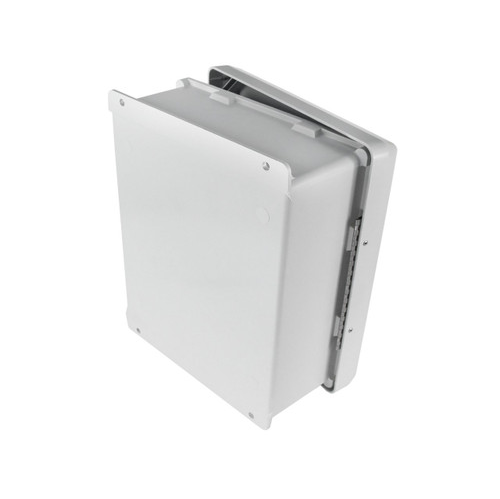

12 x 10 Electrical Enclosure

Also Known As:

Electrical Enclosure, 12 x 10 Electrical Enclosure, Enclosures and Boxes

About:

Enclosures are used to protect wire connections from short circuits which may lead to fires. Using enclosures can contain or even prevent those fires. Pacer's enclosures 12 x10 are made with the harshest marine environments in mind. This enclosure has outside dimensions of 13.32" x 11.32" and is 5.52" deep. It is made in accordance with the Joint Industrial Council (JIC)-USA. The mounting plate used to install these enclosures is sold separately.

Features:

• Designed in accordance with the Joint Industrial Council (JIC)-USA
• Continuous gasket of polyurethane foam for optimal integrity
• Cover screw holes in corners are outside of gasket area
• All mounting hardware is made of 316 stainless steel
• The enclosure can be readily worked with conventional tools
• Withstands continuous temperature up to 150°C
• Aluminum mounting plates sold separately
• Junction boxes are sold with solid or clear covers

Applications:

• Indoor or outdoor use
• Junction boxes
• Electronic housings
• Push button stations

Specifications:

• Exterior Dimensions : 13.32" x 11.32" x 5.52"
• Interior Dimensions : 12.00" x 10.00" x 5.22"
• Part No : ENCL1210
