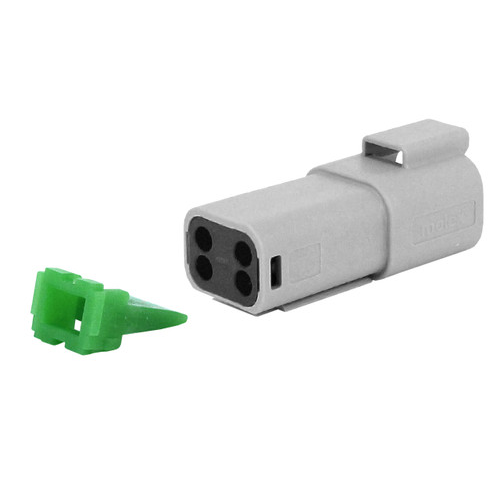

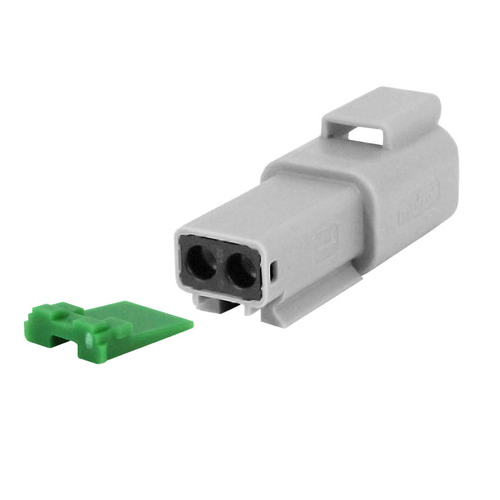

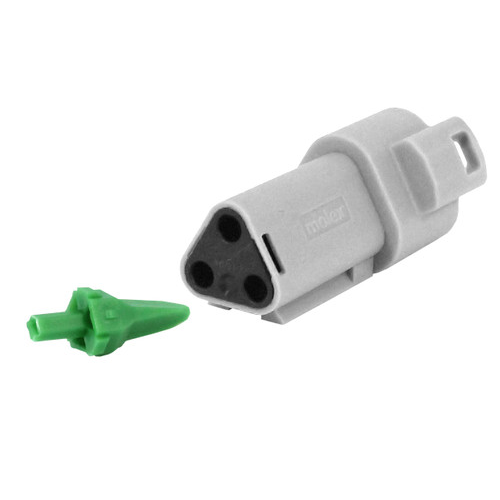

20-14 AWG Housing and Wedgelock Receptacle Pin DT Kit (Pack of 10)
Also Known As:
Housing and Wedgelock, Receptacle Pin, DT Kit, Redundant Silicone Seals, Hand insertable, Removable Contacts
About:
Protecting your electrical connections is an absolute must, and Deutsch Connectors are built for just that. DT Kit connectors are designed to create environmentally sealed electrical connections. Waterproof and resistant to vibration and shock, these Kits are built to last. What are DT series connectors Well, DT Series connectors are specifically designed for 20-14 AWG applications. These connectors offer users the ability to use multiple size 16 contacts (20-14 AWG). These DT kits are perfect for field use. They are easy to install, connect and disconnect. DT Kits contain the housing and wedge lock only. Pins and sockets to accompany these kits are sold separately.
Construction:
• Wedgelocks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand insertable and removable contacts
Standards:
• Ingress Protection (IP) Level: IP67
• EU RoHS/ELV
• Standard UL-94 Recognized
Features:
• Kits with cavities (2, 3 or 4) include housing (10 pieces) and wedgelock (10 pieces)
• Kits with cavities (6, 8 or 12) include housing (5 pieces) and wedgelock (5 pieces)
Applications:
• Wire to wire applications
• Enclosed connectors offer field proven reliability and rugged quality
Specifications:
• Contact Size: 16 (13 Amp)
• Wire Size: 20-14 AWG
• Operating Temperature: -55°C to 125°C
• Housing: Rectangular Plug / Rectangular Receptacle, Plastic reinforced with glass fiber
• Part Number: TDT04-10
Download PDF Spec Sheet
