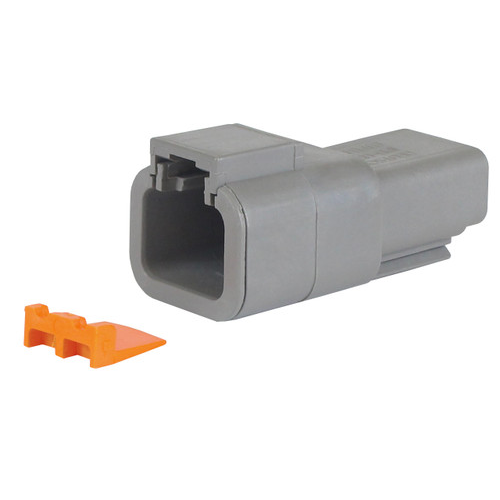

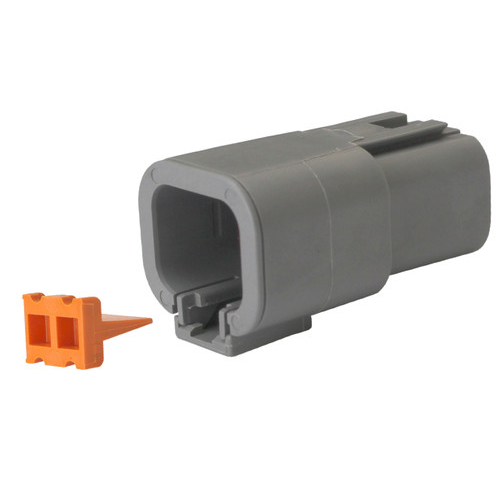

14-10 AWG Housing and Wedgelock Receptacle Pin DTP Kit
Also Known As:
Housing and Wedgelock, Receptacle Pin, DTP Kit, Redundant Silicone Seals, Hand insertable, Removable Contacts
About:
The protection of electrical connections is essential to the life of any electrical system. This is where the Deutsch DTP Kit come in. These connectors are environmentally-sealed making them ideal for handling harsh conditions. They are designed to withstand shock and vibration which is why they are utilized by the marine and automotive industries. Why use a Pacer Group DTP Kit Well, DTP series connectors are the answer for your power application requirements. The DTP Series was designed to fill the need for higher amperage, multi-pin connectors. Each circuit is capable of continuous 25 amp service. A Pacer Group DTP Kit is perfect for field service. They are easy to install, connect, disconnect and maintain. Selecting the correct part for your electrical system isn't always an easy task.
Construction:
• Wedgelocks ensure contact alignment and retention
Standards:
• EU RoHS/ELV
• Ingress Protection (IP) Level: IP67
Features:
• All DTP Kits include housing (5 pieces) and wedgelock (5 pieces)
Applications:
• Wire to wire applications
• Enclosed connectors offer field proven reliability and rugged quality
Specifications:
• Contact Size: 12 (25 Amp)
• Wire Size: 14-10 AWG
• Operating Temperature: -55°C to 125°C
• Housing: Rectangular Plug / Rectangular Receptacle, Plastic reinforced with glass fiber
• Part Number : TDTP04
Download PDF Spec Sheet
