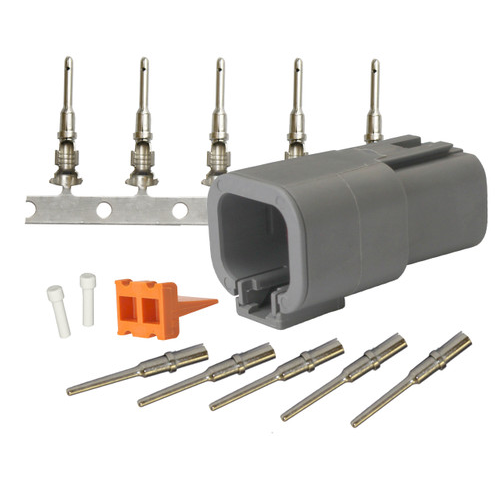

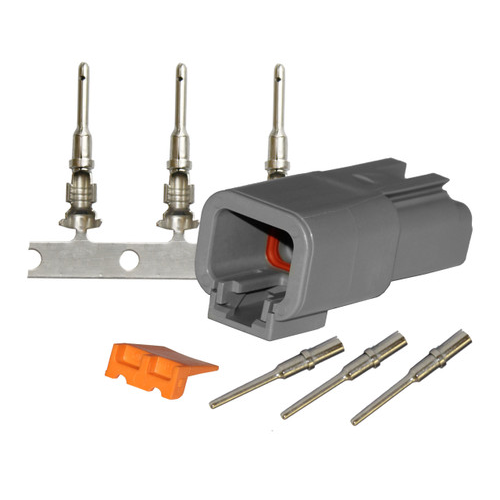

14-10 AWG DTP Receptacle Repair Pack With Contacts
Also Known As:
Receptacle Repair, Rectangular Receptacle, Plastic Reinforced, Glass Fiber, DTP Series, Redundant Silicone Seals
About:
DTP Series Deutsch Connectors are the solution for your power application requirements. The DTP line was developed to the need for higher amperage, multi-pin economical connectors. Each circuit is capable of continuous 25 amp service. Both Deutsch solid contacts (14-12 AWG) and Deutsch stamp and formed contacts (12-10 AWG) are included in the packs.
Construction:
• Redundant Silicone Seals
• Hand insertable and removable contacts
• Wedgelocks ensure contact alignment and retention
Standards:
• EU RoHS/ELV
• Ingress Protection (IP) Level: IP67
Features:
• One to two extra terminals
• Cavity plugs to seal open circuits
• Packs include all parts needed to assemble a connector
Applications:
• Wire to wire applications
• Enclosed connectors offer field proven reliability and rugged quality
Specifications:
• Contact Size: 12 (25 Amp)
• Wire Size: 14-10 AWG
• Holds Pin/Socket: Pins
• Operating Temperature: -55°C to 125°C
• Housing: Rectangular Plug / Rectangular Receptacle, Plastic reinforced with glass fiber
• Part Number : TDTP04-RP
Download PDF Spec Sheet
