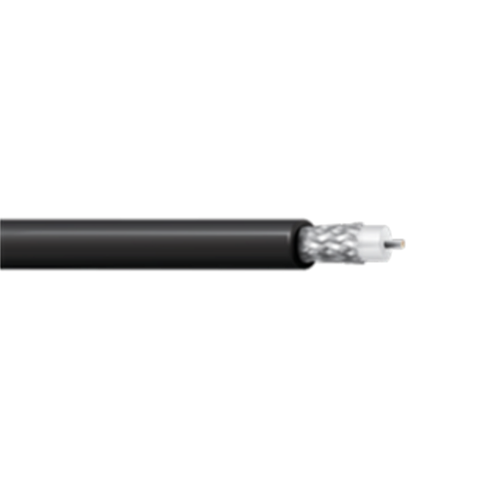

Belden 9203 20 AWG 1 Conductor 19x33 Stranding RG58 Tinned Copper 50 Ohm Coax Cable

Belden 9203 20 AWG 1 Conductor 19x33 Stranding RG58 Tinned Copper 50 Ohm Coax Cable
Roll over image to Zoom
Belden 9203 20 AWG 1 Conductor 19x33 Stranding RG58 Tinned Copper 50 Ohm Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC9203
belden-rg-8-and-rg-58-broadband-coax-cable

Select a Gauge

Belden 9203 20 AWG 1 Conductor 19x33 Stranding RG58 Tinned Copper 50 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$1.78 /FT
$1.78 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 9203 20 AWG 1 Conductor 19x33 Stranding RG58 Tinned Copper 50 Ohm Coax Cable

Description:

RG-58/U, 20 AWG stranded (19x33) 0.035" tinned copper conductor, polyethylene insulation, tinned copper braid shield (95% coverage), non-contaminating
PVC jacket.

Insulation:

• Material: PE - Polyethylene
• Nominal Diameter: 0.116 in

Outer Shield:

• Outer Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.195 in

Specifications:

• Size (AWG): 20
• Conductor Count: 1
• Stranding: 19x33
• RG Type: 58
• Impedance: 50 Ohm
• Nom. Diameter: 0.035 in
• Conductor Material: TC - Tinned Copper
• Part Number: 9203

Manufacturer Equivalents
Anixter : Black : B9203
Belden : Black : 9203 0101000
Wirexpress : Black : B9203



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
