Belden 82907 20 AWG 1 Conductor 19x32 Stranding RG-58 Thinnet 50 Ohm Coax Cable

Belden 82907 20 AWG 1 Conductor 19x32 Stranding RG-58 Thinnet 50 Ohm Coax Cable
Roll over image to Zoom

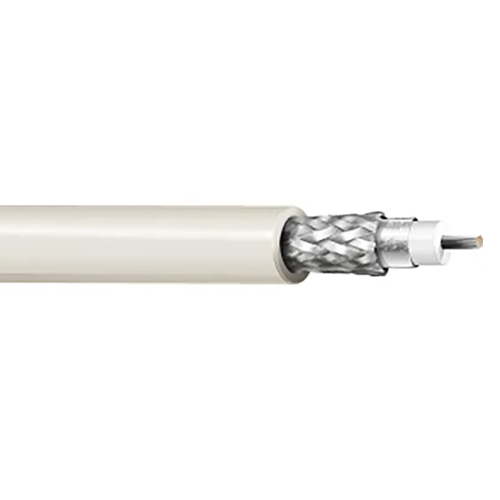

Belden 82907 20 AWG 1 Conductor 19x32 Stranding RG-58 Thinnet 50 Ohm Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC82907
belden-rg-8-and-rg-58-broadband-coax-cable

Select a Gauge

Belden 82907 20 AWG 1 Conductor 19x32 Stranding RG-58 Thinnet 50 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$3.54
$3.25 /FT 8% off
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 82907 20 AWG 1 Conductor 19x32 Stranding RG-58 Thinnet 50 Ohm Coax Cable

Description:

Thinnet 10Base2, 20 AWG stranded (19x32) 0.037" tinned copper conductor, plenum Ethernet, FPFA insulation, Duobond II + overall TC braid shield (93% coverage), Flamarrest jacket.

Insulation:

• Element: Coax(es
• Material: FPFA - Foam Perflouoroalkoxy
• Nom. Insulation Diameter: 0.095

Outer Shield:

• Layer 1: Type Tape, Bonded Aluminum Foil-Polyester Tape-Aluminum Foil Material, Material Trade Name Bonded Duofoil, Coverage [%] 100%

• Layer 2: Type Braid, Tinned Copper (TC) Material, Coverage [%] 93%

Outer Jacket:

• Material: LS PVC - Low Smoke Polyvinyl Chloride
• Outer Jacket Trade Name: Flamarrest
• Overall Nominal Diameter: 0.160 in

Applications:

• Thin Ethernet

Specifications:

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 19x32
• Nom. Diameter: 0.037 in
• Impedance: 50 Ohm
• RG Type: 58
• Conductor Material: TC - Tinned Copper
• Part Number: 82907

Manufacturer Equivalents
Anixter : Natural : B82907
Belden : Natural : 82907 8771000
General Cable : Natural : C3579
Wirexpress : Natural : B82907



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
