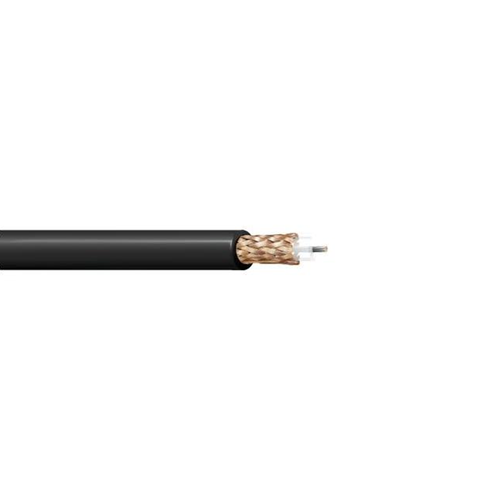

Belden 8261 18 AWG 1 Conductor 7x26 Stranding RG11 Analog Video 75 Ohm Coax Cable

Name: Belden 8261 18 AWG 1 Conductor 7x26 Stranding RG11 Analog Video 75 Ohm Coax Cable
Brand: Belden Cable
SKU: NNC8261
Price: 4.51 USD
Availability: InStock
Rating: 4.91 (8335 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC8261

Select a Gauge

Belden 8261 18 AWG 1 Conductor 7x26 Stranding RG11 Analog Video 75 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $4.51 /FT
Sale price: $4.51 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 8261 18 AWG 1 Conductor 7x26 Stranding RG11 Analog Video 75 Ohm Coax Cable

Description:

18 AWG stranded (7x26) 0.048" tinned copper conductor, polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.285 in (7.24 mm)

Outer Shield:

• Outer Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride (Non-Contaminating)
• Nom. Diameter: 0.405 in (10.3 mm)
• Overall Cable Diameter (Nominal): 0.405 in (10.3 mm)

Applications:

• SDI coax

Specifications:

• Size (AWG): 18
• Conductor Count: 1
• Stranding: 7x26
• Nom. Diameter: 0.048 in
• Impedance: 75 Ohm
• RG Type: 11
• Conductor Material: TC - Tinned Copper
• Part Number: 8261

Manufacturer Equivalents
Anixter :	Black : B8261
Belden :	Black : 8261 0101000
General Cable :	Black : C1160
Wirexpress :	Black : B8261
