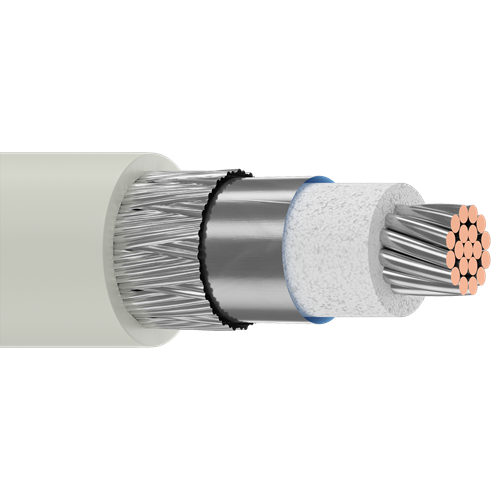

Belden 89907 20 AWG 1 Conductor 19x32 Stranding RG-58A/U Thinnet 50 Ohm Coax Cable

Belden 89907 20 AWG 1 Conductor 19x32 Stranding RG-58A/U Thinnet 50 Ohm Coax Cable
Roll over image to Zoom
Belden 89907 20 AWG 1 Conductor 19x32 Stranding RG-58A/U Thinnet 50 Ohm Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC89907
belden-rg-8-and-rg-58-broadband-coax-cable

Select a Gauge

Belden 89907 20 AWG 1 Conductor 19x32 Stranding RG-58A/U Thinnet 50 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$4.15
$3.57 /FT 13% off
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 89907 20 AWG 1 Conductor 19x32 Stranding RG-58A/U Thinnet 50 Ohm Coax Cable

Description:

IEEE 802.3 Ethernet Thinnet 10BASE2, 20 AWG (19x32) tinned copper conductor, foam FEP insulation, Duobond II (100% coverage) + tinned copper braid shield (95% coverage), fluorocopolymer jacket, CMP.

Insulation:

• Material: PFA - Perfluoroalkoxy (Foam)
• Nom. Insulation Diameter: 0.100 in (2.54 mm)

Outer Shield:

• Layer 1: Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duobond II, Coverage [%] 100%

• Layer 2: Type Braid, Tinned Copper (TC) Material, Coverage [%] 93%

Outer Jacket:

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Diameter: 0.165 in (4.19 mm)
• Overall Cable Diameter (Nominal): 0.165 in (4.19 mm)

Applications:

• Thin Ethernet (IEEE 802.3 10BASE2)

Specifications:

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 19x32
• Nom. Diameter: 0.037 in
• Impedance: 50 Ohm
• RG Type: 58
• Conductor Material: TC - Tinned Copper
• Part Number: 89907

Manufacturer Equivalents
Anixter : Gray : B89907
Belden : Gray : 89907 E4X2500
Wirexpress : Gray : B89907



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
