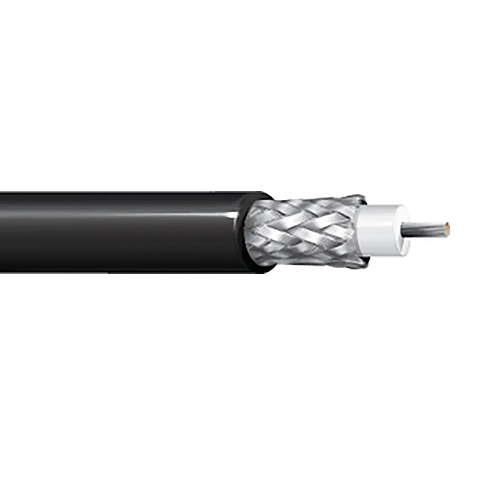

Belden 8219 20 AWG 1 Conductor 19x32 Stranding RG-58 Wireless Transmission 50 Ohm Coax Cable

Belden 8219 20 AWG 1 Conductor 19x32 Stranding RG-58 Wireless Transmission 50 Ohm Coax Cable
Roll over image to Zoom
Belden 8219 20 AWG 1 Conductor 19x32 Stranding RG-58 Wireless Transmission 50 Ohm Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC8219
belden-rg-8-and-rg-58-broadband-coax-cable

Select a Gauge

Belden 8219 20 AWG 1 Conductor 19x32 Stranding RG-58 Wireless Transmission 50 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$1.91
$1.30 /FT 31% off
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 8219 20 AWG 1 Conductor 19x32 Stranding RG-58 Wireless Transmission 50 Ohm Coax Cable

Description:

50 Ohm Wireless Transmission Coax, RG-58, 20 AWG (19x32) Tinned Copper Conductor, PE Insulation, 95% Tinned Copper Braid Shield, PVC Jacket, CM.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.116 in (2.95 mm)

Outer Shield:

• Outer Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.193 in (4.90 mm)
• Overall Cable Diameter (Nominal): 0.193 in (4.90 mm)

Applications:

Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio
Frequency Identification)

Specifications:

• Size (AWG): 20
• Stranding: 19x32
• Nom. Diameter: 0.037 in
• RG Type: 58
• Impedance: 50 Ohm
• Conductor Material: TC - Tinned Copper
• Part Number: 8219

Manufacturer Equivalents
Anixter : Black : B8219
White : B8219-9
Belden : Black : 8219 0101000
White : 8219 0091000
Wirexpress : Black : B8219
White : B8219-9



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
