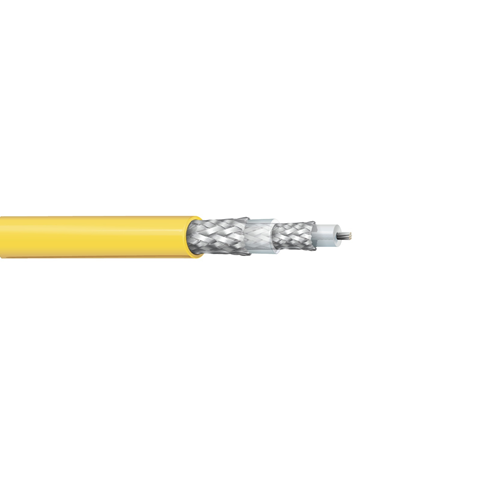

Belden 9222 20 AWG 1 Conductor 7x28 Stranding RG-58A/U Triax 50 Ohm Coax Cable

Belden 9222 20 AWG 1 Conductor 7x28 Stranding RG-58A/U Triax 50 Ohm Coax Cable
Roll over image to Zoom
Belden 9222 20 AWG 1 Conductor 7x28 Stranding RG-58A/U Triax 50 Ohm Coax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC9222
belden-rg-8-and-rg-58-broadband-coax-cable

Select a Gauge

Belden 9222 20 AWG 1 Conductor 7x28 Stranding RG-58A/U Triax 50 Ohm Coax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$3.94 /FT
$3.94 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 9222 20 AWG 1 Conductor 7x28 Stranding RG-58A/U Triax 50 Ohm Coax Cable

Description:

50 Ohm Triax RG-58A/U Type, 20 AWG stranded (7x28) 0.037" tinned copper conductor, polyethylene insulation, double tinned copper braid shields (95% coverage), PVC jacket.

Insulation:

• Element: Coax(es)
• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.12 in (3.0 mm)

Inner Shield:

• Element: Coax(es)
• Layer: 1
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Inner Jacket:

• Material: PE - Polyethylene
• Nom. Diameter: 0.177 in (4.50 mm)

Outer Shield:

• Layer: 1
• Outer Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.241 in (6.12 mm)

Applications:

• Analog video, Composite Video, Video Distribution

Specifications:

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 7x28
• Nom. Diameter: 0.038 in
• Impedance: 50 Ohm
• RG Type: 58
• Conductor Material: TC - Tinned Copper
• Part Number: 9222

Manufacturer Equivalents
Anixter : Yellow : B9222
Belden : Yellow : 9222 004500
Wirexpress : Yellow : B9222



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
