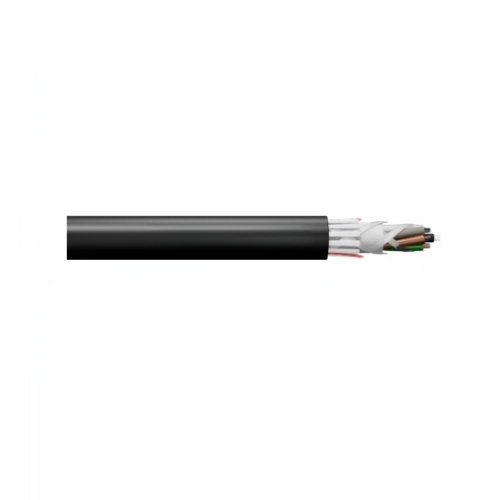

48 Fiber Loose Tube ZWP Single Mode Single Jacket Dielectric Fiber Optic Cable 110482D01

Product Information

Specification

About :

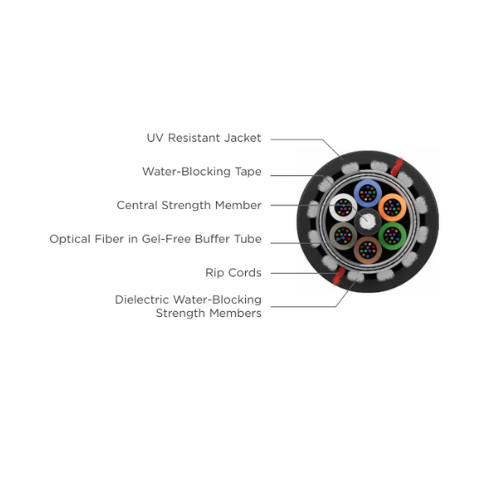

Zero Water Peak Single Mode loose tube cables are the product of choice as the backbone in outside plant (OSP) environments. The durable loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL).

Also Known as :

48 Fiber Cable, Outside Plant Cable, Single Mode Cable, Fiber Optic Cable.

Specifications :

Standards Compliance:

• Telcordia GR-20-CORE
• RDUP PE-90 Designation MLT
• ICEA S-87-640-2011
• RoHS-compliant

Applications:

• Underground duct and lashed aerial
• Trunk, distribution and feeder cable
• Local loop, metro, long-haul and broadband network

Benefits:

• High fiber density
• Multiple network applications
• Metallic option offers ease of location, dielectric design eliminates grounding issues
• Speeds fiber access and cleanup
