SIP & Multicast Talk-Back Paging Horn VIK-300TB-IP-EWP

Product Information

Specification

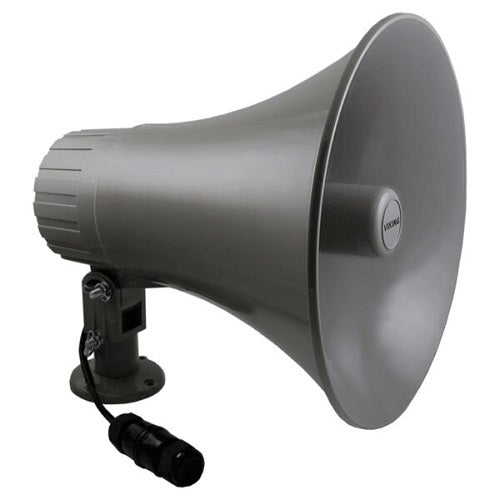

Viking 300TB-IP-EWP – SIP / Multicast Talk-Back Paging Horn with Enhanced Weather Protection

About :

The 300TB-IP-EWP Paging Horn with Talk-Back offers flexible communication options, including one-way SIP endpoint paging, two-way conversations, one-way multicast paging, and emergency SIP calls via an optional auxiliary switch. The built-in microphone supports talk-back and adjusts speaker volume based on room noise. The optional auxiliary input allows a button press to initiate standard or emergency calls. It features a powerful 6-watt amplifier capable of delivering up to 113 dB SPL at 1 meter. Designed for outdoor use, it includes Enhanced Weather Protection (EWP) meeting IP66 standards, with sealed connections and weather-resistant circuit boards for durability in harsh conditions.

Also Known As :

Paging Horn, Horn, Sound Horn, Loudspeaker Horn, Horn Loudspeaker, Loudspeaker, Speaker

Specification :

Core Features :

• Large 10-inch diameter horn
• Fully adjustable mounting hardware included
• Quick and easy installation
• SIP compliant (see the Product Manual for list of compatible IP-PBX phone systems) for more information
• PoE powered (class 3, <13 Watts)
• Paging prioritization
• Plays audio from standard multicast sources
• SIP endpoint or multicast group member
• Red call status LED indicator
• Automatic Noise Canceling (ANC) feature for operation in noisy environments
• Proprietary VOX switching eliminates the need for “Push to Talk” mode
• Selectable auto-answer feature for monitoring
• Compatible with Polycom multicast paging
• Built-in high-efficiency 6 Watt class D amplifier
• SIP/Multicast: SIP page, SIP page and zoned multicast receive
• Support for access code to prevent unwanted SIP calls
• Hangs up on: busy signal, time-out, or touch tone command
• Network remote speaker volume control
• Automatic Gain Control (AGC) to automatically increase ring volume to compensate for ambient noise
• Diagnostics for testing microphone and horn driver
• Programmable pre-page alert tone
• Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD 859
