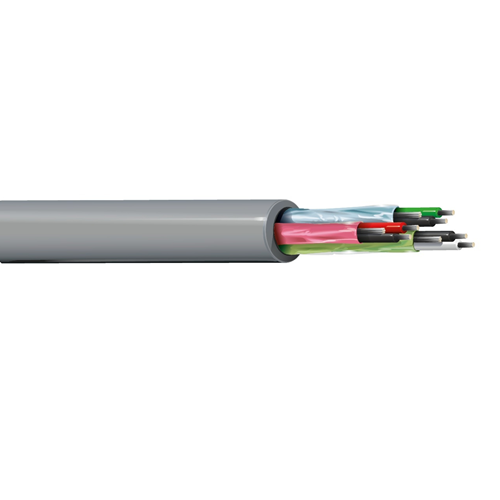

Belden 9773 18 AWG 3 Pair 19x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Name: Belden 9773 18 AWG 3 Pair 19x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable
Brand: Belden Cable
SKU: NNC9773
Price: 5.15 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC9773

Select a Gauge

Belden 9773 18 AWG 3 Pair 19x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $5.15 /FT
Sale price: $5.15 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Great service

Finally a company that sells you what you need. Every place else wants to sell you 1000’ spools. I only needed 25’ and they accommodated me. Thanks to Nassau National Cable!!!

Fast Delivery

Fast Delivery and Great Price per foot. Thanks

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 9773 18 AWG 3 Pair 19x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 18 AWG stranded (19x30) tinned copper conductors, polypropylene insulation, 3 twisted pairs, individually shielded with Beldfoil (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.082 in (2.1 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC
• Each pair is individually shielded with Beldfoil (aluminum/polyester tape) for 100% coverage, plus a 20 AWG stranded tinned copper drain wire.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.404 in (10.3 mm)
• Overall Cable Diameter (Nominal): 0.404 in (10.3 mm)

Standards:

• Impedance: 50 Ohms
• Operating Temperature: -20°C to +80°C.
• Voltage Rating: 30 V (UL AWM Style 2919) and 300 V for general use.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 18
• No. of Pair: 3
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9773

Manufacturer Equivalents
Alpha Wire :	Chrome : 6023C
Belden :	Chrome : 9773 0601000
General Cable :	Chrome : C6047A
Omni Cable :	Chrome : BEL9773
Wirexpress :	Chrome : B9773
Omni :	Chrome : BEL9773

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color

Download PDF Spec Sheet
