Belden 8776 22 AWG 15 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Name: Belden 8776 22 AWG 15 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable
Brand: Belden Cable
SKU: NNC8776
Price: 22.42 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC8776

Select a Gauge

Belden 8776 22 AWG 15 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $22.42 /FT
Sale price: $22.42 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 8776 22 AWG 15 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

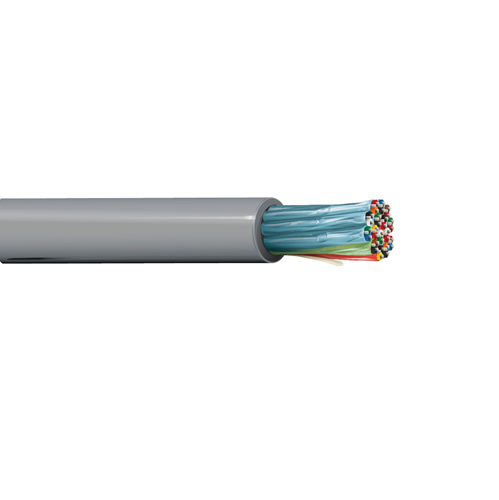

Audio, Control and Instrument Cable, 15-Pair, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, individually shielded pairs with Beldfoil (100% coverage), overall PVC jacket and 22 AWG stranded tinned copper drain wire.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.0105 in (0.267 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC
• Each pair is individually shielded with Beldfoil (aluminum/polyester tape) for 100% coverage, which minimizes electromagnetic interference (EMI) and radio frequency interference (RFI).

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.052 in (1.3 mm)
• Nom. Diameter: 0.548 in (13.9 mm)
• Overall Cable Diameter (Nominal): 0.548 in (13.9 mm)

Standards:

• Nominal Impedance: 50 Ohms
• Voltage Rating: 300 V (CM rated).
• Operating Temperature: -20°C to +80°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 22
• No. of Pair: 15
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8776

Manufacturer Equivalents
Alpha Wire :	Chrome : 6018C
Belden :	Chrome : 8776 0601000
General Cable :	Chrome : C6044A
Omni Cable :	Chrome : BEL8776
Wirexpress :	Chrome : B8776
Omni :	Chrome : BEL8776
