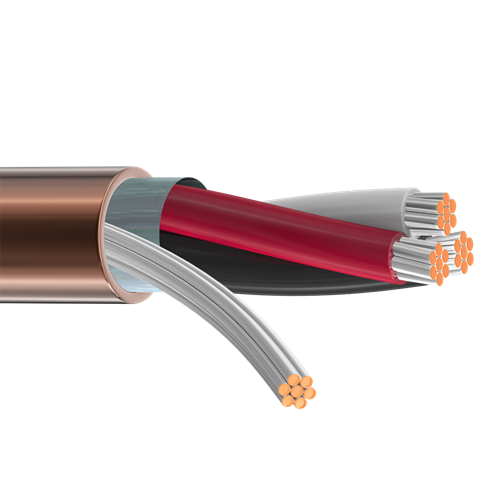

Belden 9770 22 AWG 3 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Belden 9770 22 AWG 3 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable
Roll over image to Zoom
Belden 9770 22 AWG 3 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable
SKU: NNC9770
belden-multi-pair-individual-foil-shield-pp-insulation-audio-control-and-instrumentation-cable

Select a Gauge

Belden 9770 22 AWG 3 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
Regular price
$1.92 /FT
Sale price
$1.92 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Product Information
Specification

Belden 9770 22 AWG 3 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

Electronic, 3 Conductor 22 AWG (7x30) Tinned Copper, PP Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC
• Overall Beldfoil (aluminum-polyester tape) shield with 100% coverage and a 22 AWG stranded tinned copper drain wire.

Outer Jacket:

Material: PVC - Polyvinyl Chloride
Nom. Thickness: 0.020 in (0.51 mm)
Nom. Diameter: 0.145 in (3.68 mm)
• Overall Cable Diameter (Nominal): 0.145 in (3.68 mm)

Standards:

Voltage Rating: 300 V (CM).
Operating Temperature: -20°C to +90°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Specifications:

Size (AWG):
22
• No. of Conductor3
Stranding:
7x30
• Conductor Material: TC - Tinned Copper
Part Number:
9770

Manufacturer Equivalents

Belden : Brown : 9770 0011000
Omni Cable :  Brown : BEL9770
Wirexpress : Brown : B9770
Omni :  Brown : BEL9770

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
