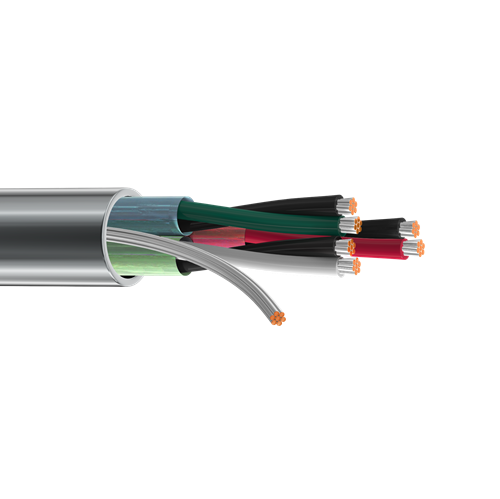

Belden 8777 22 AWG 3 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Name: Belden 8777 22 AWG 3 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable
Brand: Belden Cable
SKU: NNC8777
Price: 3.18 USD
Availability: InStock
Rating: 4.91 (8372 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC8777

Select a Gauge

Belden 8777 22 AWG 3 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Availability: In stock

Min Length: 1 FT

Max Length: 10000 FT

Price:

Regular price: $3.18 /FT
Sale price: $3.18 /FT

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Length (FT):

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Belden 8777 22 AWG 3 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 3-Pair, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, individually shielded pairs (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC
• Individually foil shielded pairs (100% coverage) with tinned copper drain wire

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.034 in (0.86 mm)
• Nom. Diameter: 0.273 in (6.93 mm)
• Overall Cable Diameter (Nominal): 0.273 in (6.93 mm)

Standards:

• Impedance: 50 Ohms
• Voltage Rating: 300 V.
• Operating Temperature: -20°C to +80°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 22
• No. of Pair: 3
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8777

Manufacturer Equivalents
Alpha Wire :	Chrome : 6010C
Belden :	Chrome : 8777 0601000
General Cable :	Chrome : C6040A
Omni Cable :	Chrome : BEL8777
Wirexpress :	Chrome : B8777
Omni :	Chrome : BEL8777
