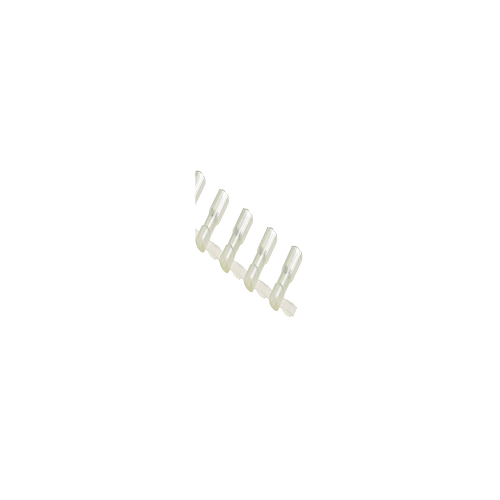

Reel Smart Disconnects on a Reel DNF18-112FIB-3K (Pack of 3000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | 18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | 22 |
| Minimum Copper Conductor Size (AWG) | 22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.110 x 0.010 |
| Maximum Wire Insulation Diameter (In.) | 0.12 |
| Maximum Wire Insulation Diameter (mm) | 3 |
| Overall Length (In.) | 0.71 |
| Overall Length (mm) | 18 |
| Overall Width (In.) | 0.19 |
| Overall Width (mm) | 4.8 |
| Tongue Angle | Straight |
| Seam Type | Butted |
| Packaging Type | Reel |
| Product Type | Disconnect |
| For Use With | Crimp press with CA9 (CD9-7A) or CA-800EZ (CD-800-7) applicator |
| Maximum Voltage (kV) | 0.6 |
| Part No | DNF18-112FIB-3K |
Reel Smart Disconnects on a Reel DNF18-112FIB-3K
DESCRIPTION :
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in natural-colored, standard receptacle nylon housing. It has a tab size of 0.110 x 0.010" (2.8 x 0.3 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.71" (18.0 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel
FEATURES :
⦿ Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
⦿ Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
⦿ Fully insulated design provides protection from electrical shorts
⦿ Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
⦿ UL Flammability, maximum insulation temperature 221°F (105°C)
⦿ per UL 310
Download PDF Spec Sheet
