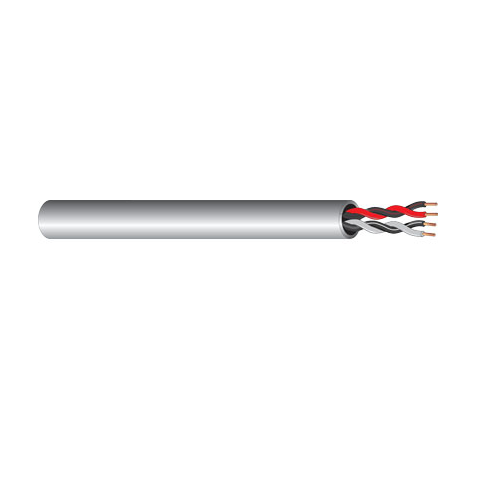

West Penn 751 18 AWG 4C 7x26 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable

Name: West Penn 751 18 AWG 4C 7x26 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable
Brand: West Penn Cable
SKU: NNC7511000
Price: 686.97 USD
Availability: InStock
Rating: 4.91 (8508 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC7511000

Select a Gauge

West Penn 751 18 AWG 4C 7x26 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable

Availability: In stock

Price:

Regular price: $686.97 /Qty
Sale price: $686.97 /Qty

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Spool

Qty:

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

West Penn 751 18 AWG 4C 7x26 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable

Allowable Ampacity for West Penn 751 18 AWG 4C 7x26 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable: 100 Amps

Applications:

• Audio Circuits
• Line Level Audio
• Division 27 41 00
• Division 27 51 00
• Low Voltage Power

Also Known as:

West Penn Cable, Audio Cable, Indoor Cable, Low Voltage Cable, Unshielded Cable, Speaker Cable, Flame Cable, Audio Indoor Cable, Communication Cable, West Penn 751

Description:

• Overall PVC jacket
• ASTM Bare Copper
• Short overall twist construction

Construction:

• Conductor Type: Bare Copper
• Insulation Type: Thermoplastic
• Jacket Type: PVC
• NEC UL Rating: CMR, CMG
• UL Flammability: UL1666 Vertical Shaft
• CSA Flammability: FT4
• Operating Range: -20 to 60 Deg C
• UL Voltage Rating: 300V

NEC Rating:

• NEC Type CMR
• (UL) C(UL) Listed
• Flame Rating: UL1666
• Meets 300V requirements as specified in the NEC

Specification:

• AWG Size: 18
• Number of Conductors: 4
• Conductor Stranding: 7x26
• Nominal DCR: 6.2 Ohm/1000ft
• Insulation Thickness: 0.008 Inch
• Jacket Thickness: 0.017 Inch
• Nominal Cable O.D: 0.257 Inch
• Bend Radius: 2.313 Inch
• Weight (1000 ft): 38 lbs
• Part Number: 751

*Data provided on this page is subject to change based on different manufacturers' variances
