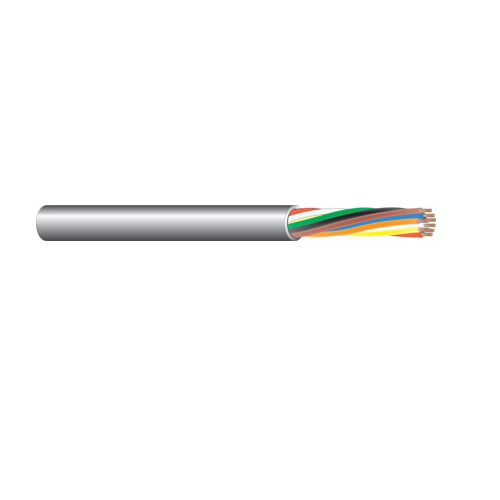

West Penn 271 22 AWG 8C 7x30 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable

West Penn 271 22 AWG 8C 7x30 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable

Allowable Ampacity for West Penn 271 22 AWG 8C 7x30 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable: 100 Amps

Applications:

• Reader Cables
• Low Voltage Power
• Division 28 05 13.16
• Instrumentation and Control

Also Known as:

West Penn Cable, Audio Cable, Indoor Cable, Low Voltage Cable, Unshielded Cable, Speaker Cable, Flame Cable, Audio Indoor Cable, Communication Cable, West Penn 271

Description:

• Overall PVC Jacket
• ASTM Bare Copper
• Cabled Construction
• Thermoplastic Insulation

Construction:

• Conductor Type: Bare Copper
• Insulation Type: Thermoplastic
• Jacket Type: PVC
• NEC UL Rating: CMR, CMG
• UL Flammability: UL1666 Vertical Shaft
• CSA Flammability: FT4
• Operating Range: -20 to 60 Deg C
• UL Voltage Rating: 300V

Rating:

• (UL)-C(UL) Listed
• Flame Rating: UL1666
• NEC Type CMR or CL3R
• Meets 300V Requirements as Specified in the NEC

Specification:

• AWG Size: 22
• Number of Conductors: 8
• Conductor Stranding: 7x30
• Nominal DCR: 17 Ohm/1000ft
• Insulation Thickness: 0.007 Inch
• Jacket Thickness: 0.017 Inch
• Nominal Cable O.D: 0.176 Inch
• Pull Tension: 73 lbs
• Bend Radius: 1.58 Inch
• Weight (1000 ft): 33 lbs
• Part Number: 271
• Belden: 5506UE
