West Penn 663 16 AWG 7C 19x29 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable

Name: West Penn 663 16 AWG 7C 19x29 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable
Brand: West Penn Cable
SKU: NNC6631000
Price: 2113.51 USD
Availability: InStock
Rating: 4.92 (8168 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: NNC6631000

Select a Gauge

West Penn 663 16 AWG 7C 19x29 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable

Availability: In stock

Price:

Regular price: $2,113.51 /Qty
Sale price: $2,113.51 /Qty

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Spool

Qty:

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

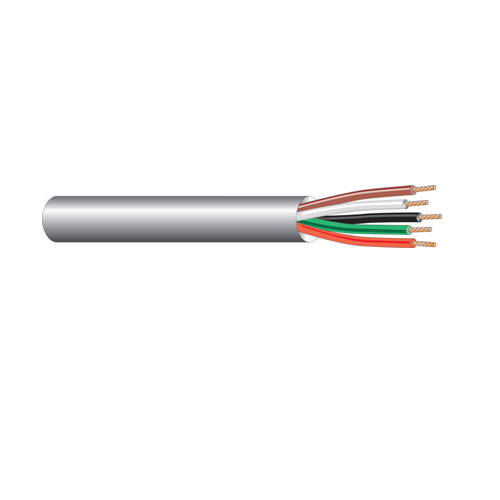

West Penn 663 16 AWG 7C 19x29 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable

Allowable Ampacity for West Penn 663 16 AWG 7C 19x29 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable: 100 Amps

Applications:

• Speaker Leve
• Audio Circuits
• Division 27 41 00
• Division 27 51 00
• Division 28 05 13
• Background Music
• Low Voltage Power

Also Known as:

West Penn Cable, Audio Cable, Indoor Cable, Low Voltage Cable, Unshielded Cable, Speaker Cable, Flame Cable, Audio Indoor Cable, Communication Cable, West Penn 663

Description:

• Overall PVC jacket
• ASTM Bare Copper
• Polypropylene insulation
• Short overall twist construction

Construction:

• Conductor Type: Bare Copper
• Insulation Type: Polypropylene - PP
• Jacket Type: PVC
• NEC UL Rating: CMR, CMG
• UL Flammability: UL1666 Vertical Shaft
• CSA Flammability: FT4
• Operating Range: -20 to 60 Deg C
• UL Voltage Rating: 300V

NEC Rating:

• NEC Type CMR
• (UL) C(UL) Listed
• Flame Rating: UL1666
• Meets 300V requirements as specified in the NEC

Specification:

• AWG Size: 16
• Number of Conductors: 7
• Conductor Stranding: 19x29
• Nominal DCR: 4.2 Ohm/1000ft
• Insulation Thickness: 0.007 Inch
• Jacket Thickness: 0.017 Inch
• Nominal Cable O.D: 0.278 Inch
• Pull Tension: 190 lbs
• Bend Radius: 2.502 Inch
• Weight (1000 ft): 82 lbs
• Part Number: 663
• Belden: 5205UE

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

In the case the material only comes in a predetermined color or doesn’t come with any color
