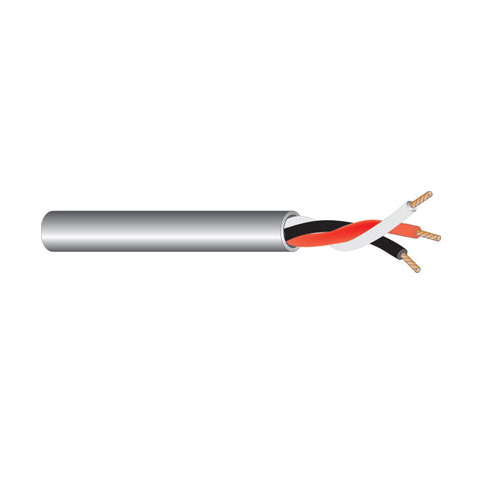

West Penn 236 14 AWG 3C 19x27 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable

West Penn 236 14 AWG 3C 19x27 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable

Allowable Ampacity for West Penn 236 14 AWG 3C 19x27 Stranded BC Unshielded CMR PVC Low Voltage Audio Communication Cable: 100 Amps

Applications:

• Speaker Level
• Audio Circuits
• Division 27 41 00
• Division 27 51 00
• Division 28 05 13
• Low Voltage Power
• Background Music

Also Known as:

West Penn Cable, Audio Cable, Indoor Cable, Low Voltage Cable, Unshielded Cable, Speaker Cable, Flame Cable, Audio Indoor Cable, Communication Cable, West Penn 236

Description:

• Overall PVC Jacket
• ASTM Bare Copper
• Thermoplastic Insulation
• Short Overall Twist Lengths

Construction:

• Conductor Type: Bare Copper
• Insulation Type: Thermoplastic
• Jacket Type: PVC
• NEC UL Rating: CMR, CMG
• UL Flammability: UL1666 Vertical Shaft
• CSA Flammability: FT4
• Operating Range: -20 to 60 Deg C
• UL Voltage Rating: 300V

Rating:

• (UL)-C(UL) Listed
• Flame Rating: UL1666
• NEC Type CMR or CL3R
• Meets 300V Requirements as Specified in the NEC

Specification:

• AWG Size: 14
• Number of Conductors: 3
• Conductor Stranding: 19x27
• Nominal DCR: 2.7 Ohm/1000ft
• Insulation Thickness: 0.012 Inch
• Jacket Thickness: 0.017 Inch
• Nominal Cable O.D: 0.24 Inch
• Pull Tension: 142 lbs
• Bend Radius: 2.16 Inch
• Weight (1000 ft): 57 lbs
• Part Number: 236
