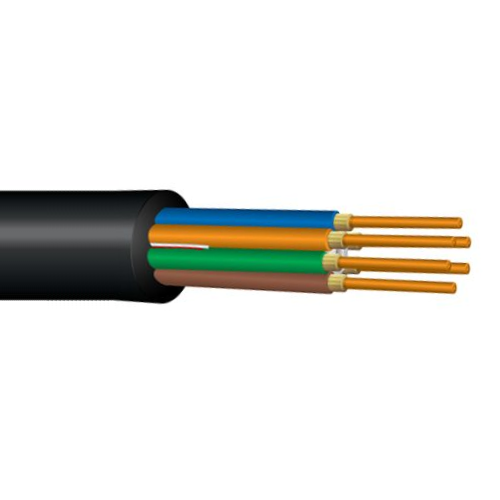

Indoor/Outdoor 24 Strand 2.5mm Breakout Series Multimode 62.5µm Black Fiber Optic Cable BX024JWLS9KR

Product Information

Specification

APPLICATIONS:

• Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are necessary

• Typical industrial uses are factory automation, power generation and other utilities, oil and gas refining, and surface mining

• Easiest cable to install where direct termination of the subcable to a connector and a direct run to panels and equipment are desired

• Ideal for locations requiring low-temperature performance along with a flame rating

STANDARDS:

OCC indoor/outdoor tight-buffered fiber optic cables meet the functional requirements of the following standards:

• ICEA-S-83-596
• ICEA-S-104-696
• GR-409-CORE ISSUE 2
• TIA-568
• TIA-598
• UL 1666
• CSA C22.2 No. 230

CHARACTERISTICS:

FEATURES:

• Fiber Optic tray Cable: Suitable for use in cable trays

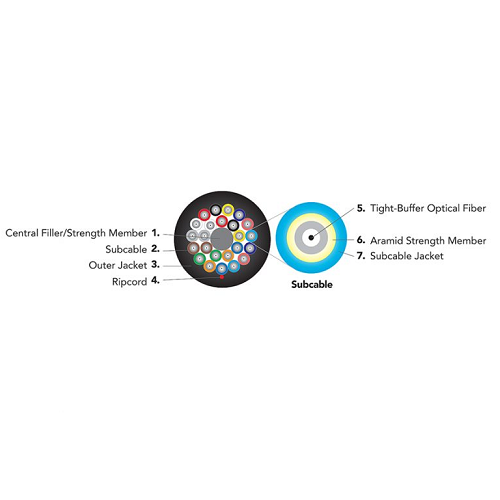

• Individual fibers and strength members protected in a subcable configuration
• Most rugged cable design with individual subcables for routing to diverse intelligent devices with direct connector termination at each device
• Meets all applicable standards for Impact & Crush Resistance (CSA C22.2 No. 230)
• Fibers may be directly terminated at factory devices or central locations using connectors with no further protection required
• J-Jacket is UV, fungus and moisture resistant
• Designed for indoor/outdoor installations, including cable trays
• 2 to 72 fiber counts are available with 2.0mm or 2.5mm subcables
• Low-temperature PVC outer jacket (J-Jacket) provides excellent performance and flexibility at low temperatures
• Wide operating temperature range of -50°C to +75°C
• Core-locked™ jacket prevents cable from flattening and the jacket from wrinkling in tight bends:
• Permits pulling with direct attachment of wire mesh grip; not need to access inner aramid strength members
• Improved crush and tear resistance
• Contains 25% more material than conventional jackets
• High crush and tensile load ratings compared to similar tray service fiber optic cables
• Oil resistant for use in industrial applications (J-Jacket)
• UL listed in accordance with NEC section 770.179(b) for use in vertical runs in building riser shafts or from floor to floor
• Designed to exceed the flammability requirements of Chapter 8 of IEEE 383
