4 Pair 23 AWG Cat6 CMR/CMX Outdoor Sunlight Resistant Cable Black 77-246-E1 1000 ft BrakeBox

Product Information

Specification

About :

Category 6 CMR/CMX Outdoor cable is specifically designed for outdoor applications. UV-blocking compounds aid in protecting the cable from light. Applications include Ethernet interconnect cable for Wi-Fi or retrofit cable installations that employ exterior runs having long-term outdoor exposure between two environmentally protected points. CMX Outdoor cables are designed to extend the run between the Network  interface Unit and the point of entry into the interior of a residence or a premise.

Jacket: Tough, flame retardant, weather, UV and abrasion resistant riser PVC.
Insulation Colors: Pair 1: ColorTip Light Blue, Blue, Pair 2: ColorTip Light Orange, Orange, Pair 3: ColorTip Light Green, Green, Pair 4: ColorTip Light Brown, Brown.

Also Known as :

4 Pair Count, 23 AWG Cable, 4 Pair 23 AWG, CAT6 Cable, Category 6 Cable, CMR Cable, Riser Cable, Twisted Pair Cat6 Cable, Unshielded Cable, Non-Plenum Cable, Non Plenum Cable.

Performance Compliance:

• UL 444
• CSA C22.2 No. 214-08
• UL 1666
• NFPA 262
• ANSI/TIA-568.2-D
• ANSI/TIA/EIA-570-B
• Article 800, NEC (NFPA 70)
• RoHS-compliant/RoHS 2-compliant

Applications:

• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• Wi-Fi – IEEE 802.11a/b/g/n

Benefits:

• Adjustable tension control on reel prevents over spin and entangling of cable
• Resists damp conditions that might weaken standard packages
• Provides remaining length of cable on reel
• Easily identifiable conductor mates even in low-light environments
• Facilitates easy opening
• Easily identifies jacket colors

Features:

• BrakeBox payout control system
• QuickCount marking system in feet and meters
• ColorTip circuit identification system
• Rip cord applied under jacket

Specifications:

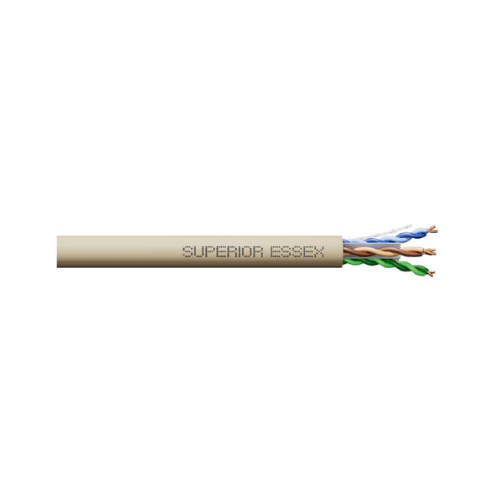

*Image is an illustration purpose only, may not reflect the exact color sold.
