1000' 23 AWG 4 Pairs Black CAT6 CMXT Direct Burial Unshielded Dual Jacket Cable

Product Information

Specification

1000' 23 AWG 4 Pairs Black CAT6 CMXT Direct Burial Unshielded Dual Jacket Cable

DESCRIPTION:

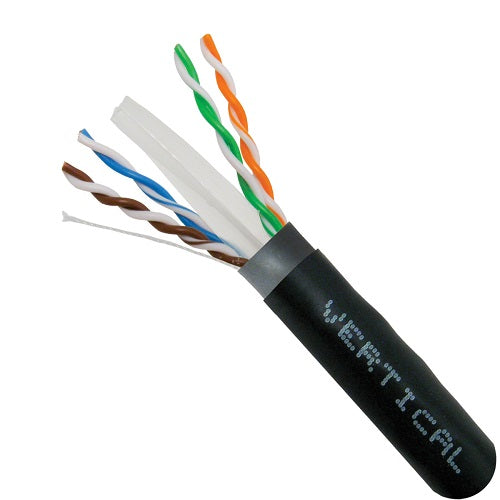

Category-6 CMXT unshielded cable for direct burial, featuring 8 solid bare copper conductors (23AWG). Comes in a 1000 ft. black wooden spool.

FEATURES:

⦿ Category-6 Unshielded Twisted Pair
⦿ High Bandwidth for Data Applications
⦿ 23AWG Solid Copper Conductors
⦿ Easily Identified Color-Striped Pairs
⦿ Exceeds ANSI/TIA-568C.2, ISO/IEC 11801
⦿ CAN/CSA-C22.2 No. 214
⦿ ETL Listed, RoHS Compliant

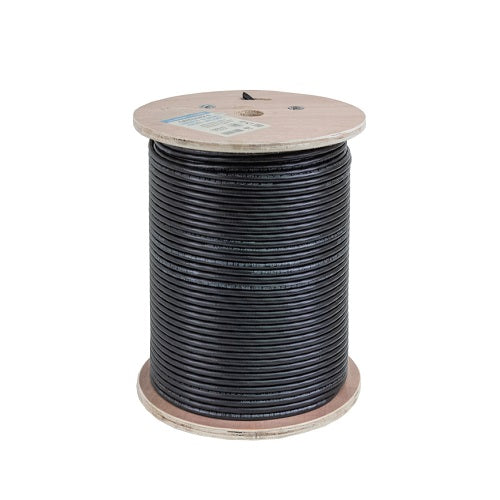

⦿ 1,000ft Wooden Spool

Technical Data

⦿ Rated Temperature 70ºC
⦿ Rated Voltage 30V

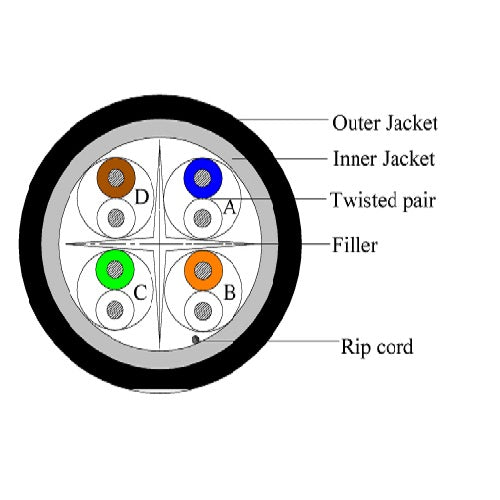

Conductor Solid Bare Copper

⦿ Size 23 AWG
⦿ Diameter (mm) 0.57

Insulation PE

⦿ Insulation Diameter (±0.01mm) 1.01
⦿ Average Thickness (mm) 0.220
⦿ Twisted Pair Diameter (±0.02 mm): 2.02

Separator LDPE

⦿ Assembly Diameter 5.00mm

Inner Jacket PVC

⦿ Outer Diameter (±0.20mm) 5.80
⦿ Average Thickness (mm) 0.40
⦿ Min Thickness (mm) 0.35
⦿ Rip Cord Nylon

Outer Jacket LLDPE

⦿ Outer Diameter (±0.10mm) 7.00
⦿ Average Thickness (mm) 0.60
⦿ Min Thickness (mm) 0.54
⦿ Rip Cord Nylon

Color of Pairs

⦿ Pair 1: Blue, White-Blue
⦿ Pair 2: Orange, White-Orange
⦿ Pair 3: Green, White-Green
⦿ Pair 4: Brown, White-Brown

Mechanical Characteristics

⦿ Test Object Jacket
⦿ Test Material LLDPE
⦿ Before Tensile Strength (Mpa) ≥10.8
⦿ Aging Elongation (% ≥ 300
⦿ Aging Condition (ºCxhrs) 100x168
⦿ After Tensile Strength (Mpa) ≥85% of unaged
⦿ Aging Elongation (% ≥ 50% of unaged
⦿ Cold Bend (-20±2º Cx4hrs) No Crack
⦿ Bend radius ≥100mm

Marking on Jacket

⦿ VERTICAL 4001453 cETLus VERIFIED UTP 4PR 23AWG OUTDOOR
DIRECT BURIAL UV LLDPE CAT6 600MHz TIA/EIA-568C.2 RoHS XXXXFT
(SEQUENTIAL FOOT MARKERS ON JACKET)
