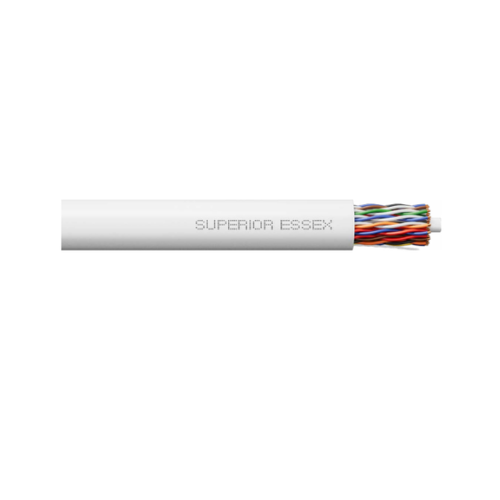

24 AWG 25 Pair Cat5e Power Sum UTP Riser Copper Cable White 51-478-45 1000 ft
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
25-Pair Power Sum Category 5e UTP cables are designed to provide support for both backbone and horizontal applications. These applications include inter-closet backbone links, equipment cabling between cross-connect and hub equipment and zone distribution horizontal cabling between wiring closets and multiple work area transition points. The cable is available in CMP and CMR ratings.
Also Known as :
24 AWG Cable, 25 Pair Cable, 25 Pair Premises Cable, 24 AWG 25 pair, 25 Pair Cat5e Cable, Cat5e 25 Pair Cable, CAT5E Cable, Cat5e CMR/CMX, Power Sum Cat5e Cable, Cat5e CMR Cable.
Performance Compliance:
• UL 444
• CSA C22.2 No. 214-08
• UL 1666
• NFPA 262
• ANSI/TIA-568.2-D
• ANSI/ICEA S-90-661-2012
• Article 800, NEC (NFPA 70)
• RoHS-compliant/RoHS 2-compliant
Applications:
• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• ATM and token ring
Benefits:
• Handles tight installations
• Easier identification of conductors
• Ease of use during installation
• Dual length marking complies with government, military and international requirements
Features:
• Small outside diameter
• Vibrant insulation colors
• Flexible jacket material
• Marked in feet and meters
Specifications:
| Pair Count | 25 |
| Gauge | 24 AWG |
| Conductor | Solid annealed copper |
| Nominal Diameter | 0.57 inch / 14.5 mm |
| Insulation | Thermoplastic |
| Flammability Rating | Riser |
| Characteristic Impedance Ohms |
100 ± 15 |
| Nominal Velocity of Propagation % |
69 |
| Separator | Cylindrical |
| Jacket | Flame retardant PVC |
| Jacket Color | White |
| Package | 1000' Plywood reel |
| Part Number | 51-478-45 |
