2000' 24 AWG 4 Pairs Black CAT5E CMXT Direct Burial Shielded LSZH Jacket Cable

Product Information

Specification

2000' 24 AWG 4 Pairs Black CAT5E CMXT Direct Burial Shielded LSZH Jacket Cable

DESCRIPTION:

Category 5E STP Direct Burial Cable with Drain Wire, 8-Conductor, Waterproof Outdoor Jacket, 24AWG Solid Bare Copper.

FEATURES:

⦿ ETL Listed

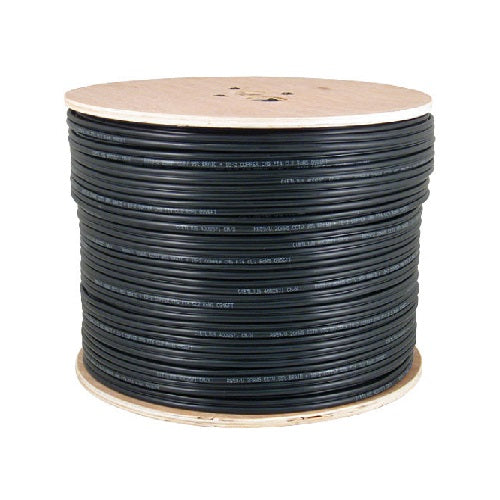

⦿ 2000 ft Wooden Spool

⦿ High-Performance Data Cable

⦿ 350 MHz Bandwidth for Data Applications, Fast Ethernet and 155 Mbps TP-PMD/CDDI

⦿ Category-5E Shielded Twisted Pair

⦿ Easily Identified Color-Striped Pairs

⦿ 24 AWG Solid Copper Conductors

⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801

⦿ CAN/C-C22.2.2 No. 214

⦿ Direct Burial Gel Filled (Flooded Core)

Technical Data:

⦿ Rated Temperature 75ºC

⦿ Rated Voltage 60V

⦿ Product Standard Certification CMX

⦿ Flammability Test IEC-332-1

Conductor Solid Bare Copper:

⦿ Size 24 AWG  (0.51 mm)

Insulation PE:

⦿ Average Thickness (mm) 0.208

⦿ Insulation Diameter (±0.005mm) 0.91

⦿ Twisted Pair Diameter (±0.01) 1.92

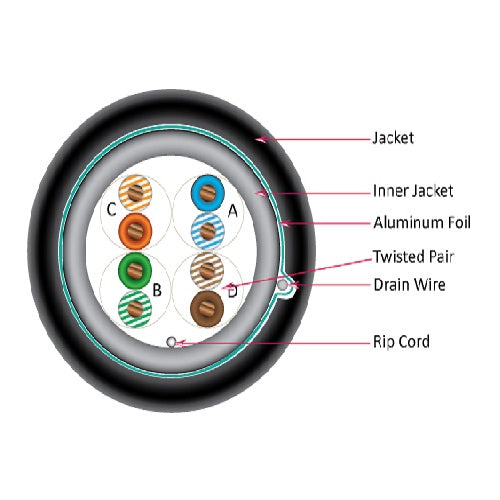

Assembly Diameter (3.80 mm):

Inner Jacket (Gray) PVC

⦿ Average Thickness (mm) 0.40

⦿ Min. Point Thickness (mm) 0.36

⦿ Outer Diameter (±0.10mm) 4.80

⦿ AL Foil: Yes

⦿ Drain Wire (Tinned Copper) 7/0.16

Outer Jacket (Black) LSZH (UV)

⦿ Average Thickness 0.60

⦿ Min. Point Thickness 0.54

⦿ Outer Diameter 06.20±0.10

⦿ Rip Cord: Yes

Color of Pairs:

⦿ Pair 1: Blue, White-Blue

⦿ Pair 2: Orange, White-Orange

⦿ Pair 3: Green, White-Green Pair

⦿ 4: Brown, White-Brown

Mechanical Characteristics:

⦿ Test Object Jacket

⦿ Test Material LLDPE

⦿ Before Tensile Strength (Mpa) ≥13.8

⦿ Aging Elongation (%) ≥100

⦿ Aging Condition (ºCxhrs) 100x168

⦿ After Tensile Strength (Mpa) ≥85% of unaged

⦿ Aging Elongation (%) ≥50% of unaged

⦿ Cold Bend (-40±2º Cx4 hrs) No Crack

⦿ Bend Radius > 20mm

Marking on Jacket:

⦿ VERTICAL 4001453 cETLus VERIFIED CMX STP 4PR 24AWG OUTDOOR DIRECT BURIAL (DRY) UV LSZH CAT5E 350MHz TIA/EIA - 568C.2 RoHS XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
