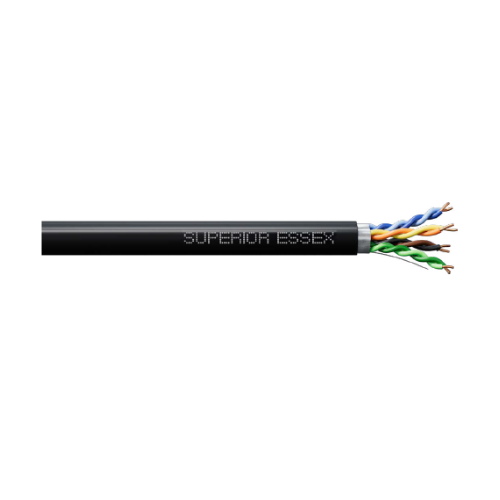

4 Pair 24 AWG Cat5e Aluminum Foil CMR/CMX Outdoor Sunlight Resistant Cable Black 5F-220-E1

Product Information

Specification

About :

Category 5e F/UTP (ScTP) CMR/CMX Outdoor Sunlight Resistant cable is specifically designed for extreme sunlight and temperature applications that require shielding and a ground wire for Power-over-Ethernet (PoE) devices. The level of UV-blocking compounds
is the same as in traditional Outside Plant (OSP) cable products with the black color preventing damage from long-term UV sunlight exposure. CMX Outdoor cables are designed to extend the run between the Network Interface Unit and the point of entry into the interior of a residence or a premise.

Also Known as :

4 Pair Count, 24 AWG Cable, 4 Pair 24 AWG, F/UTP Cable, SuTP Cable, Cat5e Aluminum Shield Cable, Cat5e Shield Cable, Riser Cable, Riser Cat5e, Riser Indoor Cable.

Performance Compliance:

• UL 444
• CSA C22.2 No. 214-08
• UL 1581
• UL 1666
• NFPA 262
• ANSI/TIA-568.2-D
• ANSI/ICEA S-90-661-2012
• Article 800, NEC (NFPA 70)
• RoHS-compliant/RoHS 2-compliant

Applications:

• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• Wi-Fi – IEEE 802.11a/b/g/n
• Applications requiring secure networks or protection from EMI/RFI
• Indoor/Outdoor Ethernet applications

Benefits:

• Increased life in direct, long term sunlight
• Reduces inventory by eliminating multiple cable types
• CAT 5e compliant
• Free of heavy metal and toxic components

Features:

• UL 444/UL 1581 Sunlight Resistant Listed
• Combined CMR Riser Indoor and CMX Outdoor Sunlight Resistant Listing
• Moisture-resistant package
• ColorTip circuit identification system

Specifications:
