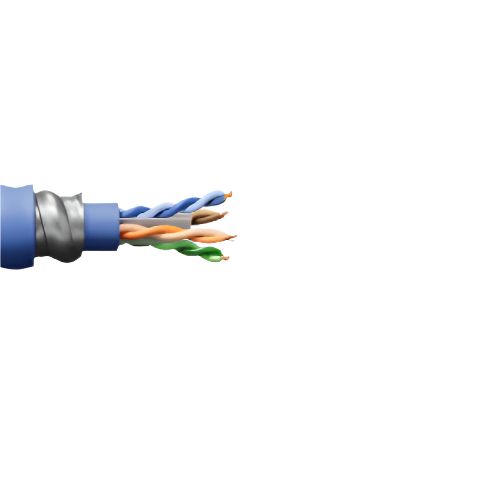

4 Pair Cat5e Riser Aluminum Interlock Armored No Outer Jacket Premises Cable Blue K2-199-25 1000 ft

Product Information

Specification

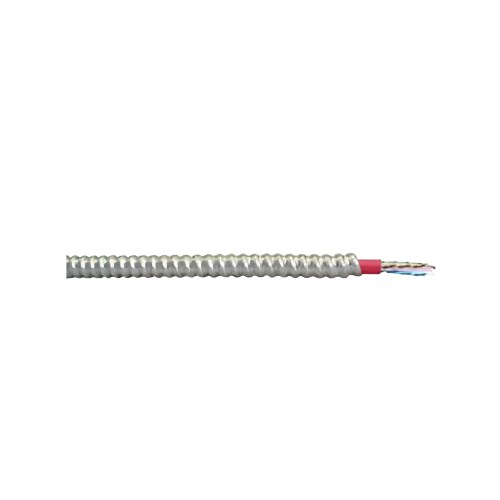

Note: Image is an illustration purpose only, may not reflect the exact color sold.

About:

Interlock Armored Category 5e cables provide significant mechanical protection. Interlock armored cables with two or more components of the same type can have either different colored components or uniquely labeled components with the same color. Multiple cables can be constructed in aluminum interlock armored; and the final cable is available in bare metal or with an overall jacket. Each component cable is tested after interlock armoring to ensure that it meets all applicable industry requirements. Cable configurations that include optical fiber distribution cables are also available.

Also Know As:

Cat Aluminum Interlock Armored Cable,  Category 5e Cable, Ethernet cables, Network cables. Ethernet interlock cables, Armored category cables, Interlock armored cat cables.

Features:

• Aluminum interlock armored
• Category components meets ANSI/TIA-568-C.2 for CAT 3, CAT 5e and CAT 6
• CMR rated components

Benefits:

• Protects against mechanical stresses
• Protects against EMI/RFI for reliable performance
• Provides additional fire protection over riser rating
• Installs faster and easier than EMT conduit and conventional wire
• Supports applications up to 1000BASE-T
• Maintains the fire rating with interlock armored removed

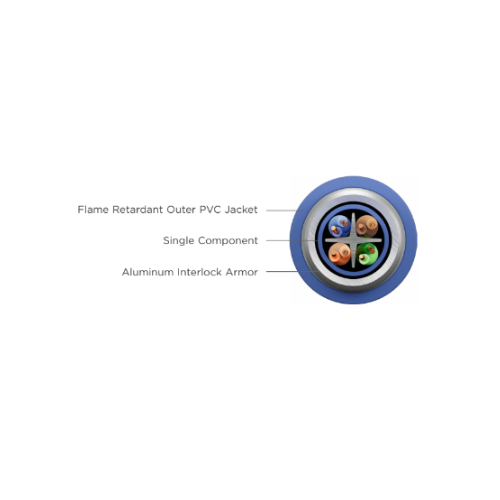

Overall Cable Configuration: Single to multiple component riser cables surrounded by aluminum or steel interlock armored

Armor: Interlocked aluminum

Armor Jacket Options: Non-jacketed or jacketed (matches component color)

Armor/Component Jacket: Riser grade PVC

Component Fire Listings: UL 1666, UL CMR, c(UL) CMR

Performance Compliance: UL 1569, UL 444, CSA C22.2 No. 214-08, ANSI/TIA-568-C.2, ANSI/ICEA S-90-661-2012, Article 800, NEC (NFPA 70), RoHS-compliant/RoHS 2-compliant

NRTL Programs: UL, c(UL) Listed CMR

Specification:

• Component: 4-pair CAT 5e
• No Of Components: 1
• Nominal Diameter: 0.44 in
• Jacket Color: Blue
• Weight: 55 lbs/kft
• Package: 1,000' Wood reel
• Part Number: K2-199-25
