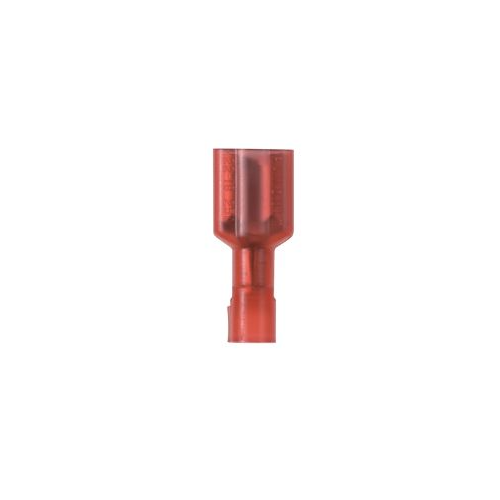

22-18 AWG Pan-Term Female Disconnect Nylon Insulated Metal Collar DNF18-250FI-M (Pack of 1000)

Product Information

Specification

About:

The DNF18-250FI-M is a specialized Pan-Term Female Disconnect terminal designed for wire terminations in the 22-18 AWG range. What sets this apart is its combination of nylon insulation and a metal collar, enhancing the durability and strength of the crimp connection. Available in a bulk package of 1000, this model is ideal for larger projects or applications where consistent and enhanced crimp durability is crucial.

Also Known As:

• Metal Collar Female Quick Disconnect
• Reinforced Female Spade Terminal
• Nylon Crimp Terminal with Metal Support

Common Applications:

• Large-scale electrical systems needing enhanced crimp strength.
• Bulk installations in commercial and industrial electronics.
• Manufacturing units with machinery that requires frequent electrical connections.
• HVAC systems in commercial settings where robust connections are a necessity.
• Electrical installations in environments with vibrations or movements, like transportation systems or manufacturing lines.

Standards:

• UL (Underwriters Laboratories) safety benchmarks.
• RoHS (Restriction of Hazardous Substances) directives.
• CE certification, indicative of European standards compliance.

Construction:

• Terminal Body: Usually forged from tinned or plated brass or copper to ensure optimal electrical transmission.

• Insulation: Comprised of nylon, this ensures electrical insulation and shields the connection from environmental factors.

• Metal Collar: This feature reinforces the crimping point, imparting extra strength and support.

• Crimp Barrel: This is where the wire is inserted and crimped, ensuring a robust and secure connection.

Features:

• Quick Disconnect Mechanism: Provides seamless and secure attachment and detachment processes.

• Metal Collar for Reinforcement: Grants the crimp extra durability and sturdiness, making it ideal for demanding applications.

• Tailored for Diverse Wire Range: Explicitly made for 22-18 AWG, catering to a wide range of uses.

• Sturdy and Resilient: Resistant to standard solvents, oils, and potential corrosive elements, especially at the crimp.

• Effortless Identification: Leveraging color-coding (commonly red for 22-18 AWG), this terminal offers immediate recognition of wire gauge compatibility.

Specification:
