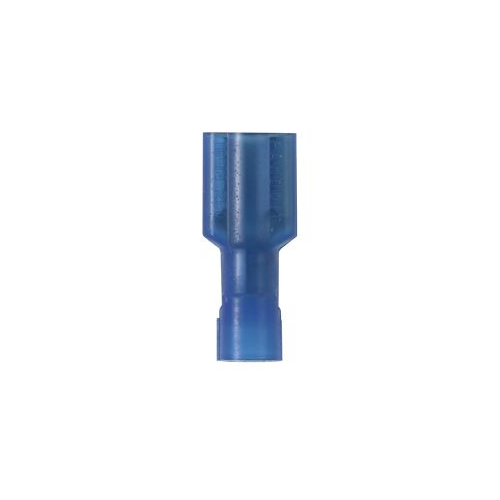

16-14 AWG Pan-Term Female Disconnect Nylon Insulated Metal Collar DNF14-250FI-M (Pack of 1000)

Product Information

Specification

About:

The DNF14-250FI-M is a Pan-Term Female Disconnect terminal, tailor-made for wire terminations within the 16-14 AWG range. Its distinctive feature is the integration of nylon insulation with a metal collar, augmenting the crimp connection's resilience and durability. Offered in a substantial pack of 1000, this terminal is an excellent choice for large-scale operations or settings where a reinforced crimp is indispensable.

Also Known As:

• Metal Collar Female Quick Disconnect
• Reinforced Female Spade Connector
• Nylon Crimp Terminal with Metal Enhancement

Common Applications:

• Industrial units with equipment necessitating reliable electrical connections.
• Bulk installations in commercial infrastructure, such as malls and office complexes.
• Comprehensive electrical systems in automotive industries where additional crimp strength is pivotal.
• Transportation systems, like trains or trams, requiring secure connections amidst constant vibrations.
• Large-scale HVAC setups, particularly in commercial environments.

Standards:

• UL (Underwriters Laboratories) safety protocols.
• RoHS (Restriction of Hazardous Substances) compliance.
• CE markings, indicating conformance with European standards.

Construction:

• Terminal Body: Typically constructed from tinned or plated brass or copper for premium electrical conductivity.

• Insulation: Made from nylon, offering electrical isolation and shielding the connection against external influences.

• Metal Collar: Enhances the crimping point by delivering added strength and stability.

• Crimp Barrel: The segment where the wire is introduced and crimped, ensuring a firm connection between the wire and terminal.

Features:

• Quick Disconnect Feature: Allows for a hassle-free and secure connection and disconnection process.

• Metal Collar Reinforcement: Assures a stronger crimp, making the terminal particularly apt for demanding scenarios.

• Adapted to Multiple Wire Ranges: Specifically designed for 16-14 AWG, addressing diverse applications.

• Robust Build: Demonstrates resistance against standard solvents, oils, and other potentially corrosive agents.

• Color-coded Design: Utilizing color-coding (often blue for 16-14 AWG) for quick gauge compatibility recognition.

Specification:
