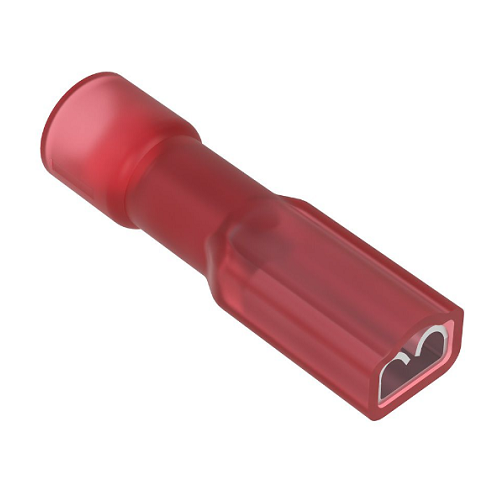

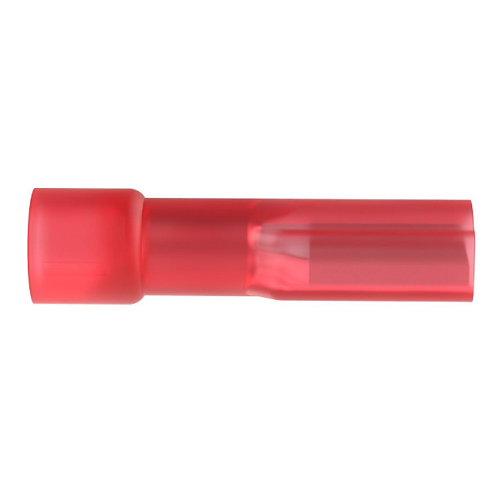

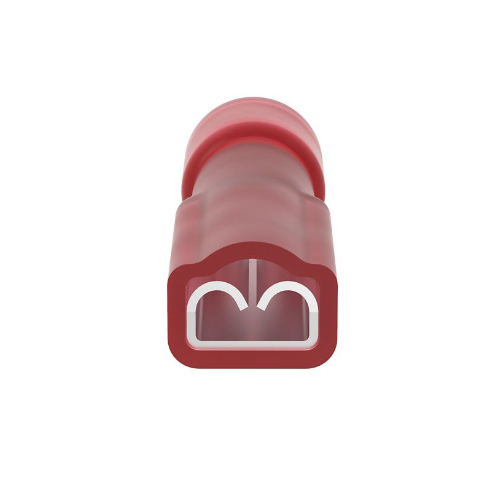

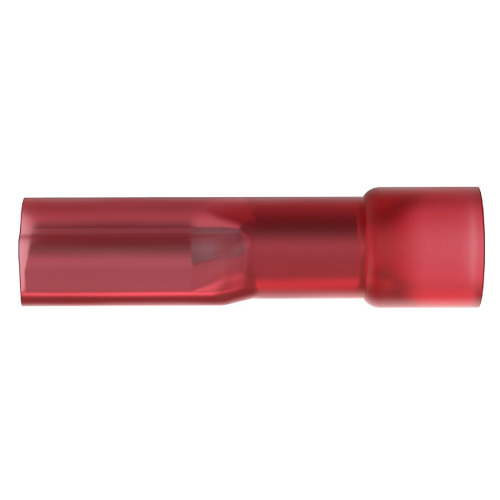

0.19 22-18 AWG Pan-Term Female Disconnect Nylon Insulated DNF18-111FIB-C (Pack of 100)

Product Information

Specification

About:

The Pan-Term Female Disconnect is an electrical terminal designed for rapid and reliable connections in wiring systems. The specification indicates it's intended for wire sizes between 22 and 18 American Wire Gauge (AWG).

Also Known As:

• Female spade terminal
• Slide-on connector
• Female quick-disconnect
• Push-on terminal

Common Applications:

• General Electrical Installations: In situations where a removable or adjustable connection is advantageous.

• Consumer Electronics: Utilized within devices requiring efficient and quick connections.

• Industrial Controls: For establishing connections to switches, relays, and various control devices.

• Automotive Wiring: For connecting electrical accessories, switches, or relays.

• HVAC Systems: Primarily in control setups and for thermostat connections.

Standards:

• UL (Underwriters Laboratories): Pertaining to safety.
• RoHS (Restriction of Hazardous Substances): Relating to environmental and health considerations.

Construction:

• Design: The female disconnect typically includes a tab or slot that can easily attach to its male counterpart, ensuring a secure and swift electrical connection.

• Insulation: Comprises nylon, ensuring electrical insulation and offering a degree of mechanical protection.

• Material: Predominantly constructed from high-conductivity copper, which may be tin-plated for enhanced corrosion resistance.

Features:

• Versatility in Size: Compatible with 22-18 AWG wires, ensuring adaptability across various applications.

• Efficient Connectivity: Created for swift slide-on and removal, thus guaranteeing efficient connections.

• Nylon Insulation: Facilitates electrical safety by mitigating short-circuit risks and provides mechanical safeguarding.

• Packaging: Sold in a pack of 100, suitable for medium-scale applications or projects.

• Optimal Electrical Conductivity: Primarily composed of copper for excellent electrical performance.

• Resistance Against Corrosion: Often comes with tin-plating to ensure durability, especially in environments exposed to moisture or other contaminants.
