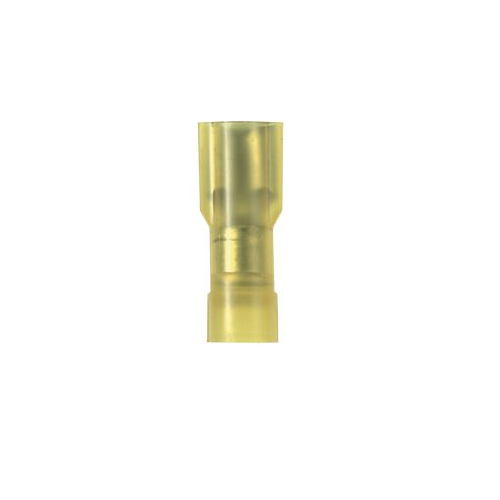

12-10 AWG Pan-Term Female Disconnect Nylon Insulated Metal Collar DNF10-250FI-D (Pack of 500)

Product Information

Specification

About:

The DNF10-250FI-D is a specialized Pan-Term Female Disconnect terminal tailored for wire terminations in the 12-10 AWG range. Its unique construction features nylon insulation complemented by a metal collar, which adds to the durability and strength of the crimp connection. Available in a pack of 500, this terminal is designed for medium to large projects, particularly where a robust crimp connection is a prerequisite.

Also Known As:

• Metal Collar Female Quick Disconnect
• Reinforced Nylon Female Spade Connector
• Metal-Enhanced Nylon Crimp Terminal

Common Applications:

• Commercial electrical installations in environments like shopping centers or entertainment venues.
• Industrial machinery where electrical connections need to withstand vibrations or frequent use.
• Advanced electrical systems in vehicles, especially those requiring reinforced crimp connections.
• Power distribution systems in industrial and commercial settings.
• Large-scale HVAC systems, especially those deployed in challenging environments.

Standards:

• UL (Underwriters Laboratories) safety standards.
• RoHS (Restriction of Hazardous Substances) compliance.
• CE markings, showcasing European standards alignment.

Construction:

• Crimp Barrel: The section where the wire is inserted and crimped, solidifying a secure bond between the wire and the terminal.

• Insulation: Composed of nylon, it provides electrical insulation while defending the connection from external elements.

• Terminal Body: Often made from tinned or plated brass or copper to guarantee premium electrical conduction.

• Metal Collar: A distinguishing feature that reinforces the crimping point, conferring added durability and support.

Features:

• Adapted for a Specific Wire Range: Meticulously designed for 12-10 AWG, offering versatility in a range of applications.

• Reinforced Metal Collar: Provides enhanced durability and strength to the crimp, making it suitable for demanding situations.

• Quick Disconnect Design: Facilitates effortless and reliable connection and disconnection.

• Color-Coded Identification: Leverages color-coding (usually yellow for 12-10 AWG) for quick recognition of wire gauge compatibility.

• Resilient Construction: Offers resistance against typical solvents, oils, and potential corrosive substances.

Specification:
