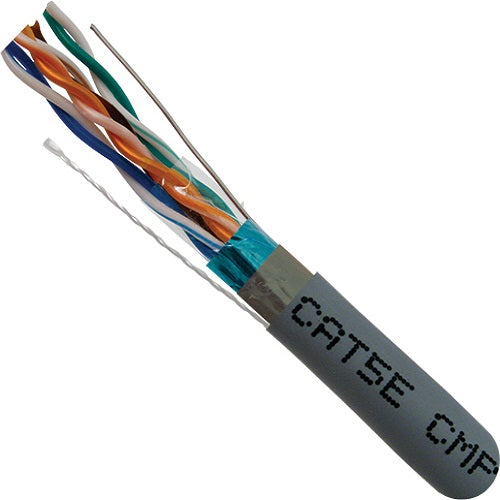

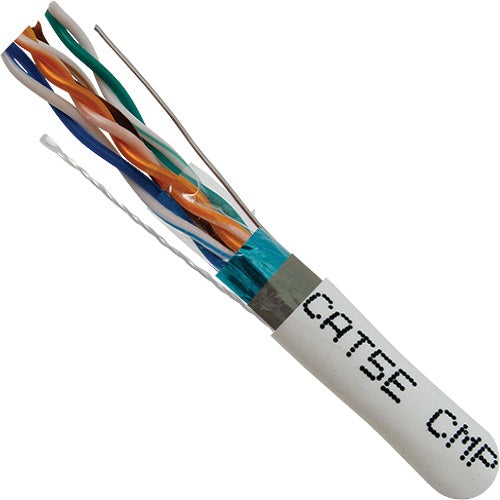

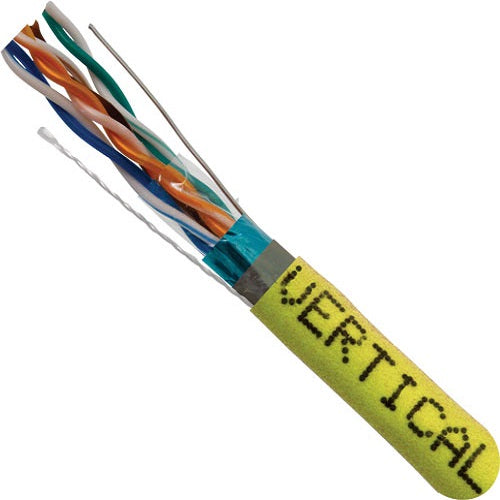

1000' 24 AWG Solid Bare Copper F/UTP Plenum/Shielded CAT5E 350MHz Cable

Product Information

Specification

⦿ Suitable for 350 MHz High-Speed Data Applications, ANSI X3T9.5 TP-PMD (FDDI), ATM PMD 155 Mbps, IEEE 802.3 Fast Ethernet 10Base-T, 100Base-T4, 100Base-X, IEEE 802.5, 4/16 Mbps Token Ring, IEEE 802.12, 100Base-VG, Gigabit Ethernet

⦿ Designed for Indoor Installations

⦿ Plenum Rated (CMP)

⦿ Category-5E Shielded Twisted Pair (F/UTP) Cable

⦿ Easily Identified Color-Striped Pairs

⦿ 24 AWG Solid Bare Copper Conductors, 4-Pair

⦿ Excellent Attenuation and Crosstalk Characteristics

⦿ ANSI/TIA-568 C.2

⦿ UL Listed, TAA Compliant, RoHS Compliant

⦿ Supplied in a 1000ft Pull Box

Technical Data:

⦿ Rated Temperature 70ºC

⦿ Product Standard Certification CMP

⦿ Flammability Test UL 444

Conductor: Solid Bare Copper

⦿ Size 24 AWG

Insulation PE

⦿ Insulation Thickness (mm): 0.225

Color of Pairs Pair

⦿ Pair 1: Blue, White-Blue

⦿ Pair 2: Orange, White-Orange

⦿ Pair 3: Green, White-Green

⦿ Pair 4: Brown, White-Brown

⦿ Drain Wire: Yes

⦿ Aluminum Foil: Yes

⦿ PE-Tape: Yes

⦿ Rip Cord: Yes

Jacket FR-PVC

⦿ Outer Diameter (mm) 5.6

⦿ Mechanical Characteristics

⦿ Test Object Jacket

⦿ Test Material FR-PVC

⦿ Before Tensile Strength (Mpa) ≥13.8

⦿ Aging Elongation (%) ≥100

⦿ Aging Condition (ºCxhrs) 100x168

⦿ After Tensile Strength (Mpa) ≥85% of unaged

⦿ Aging Elongation (%) ≥50% of unaged

⦿ Cold Bend (-20±2º Cx4 hrs) No Crack
