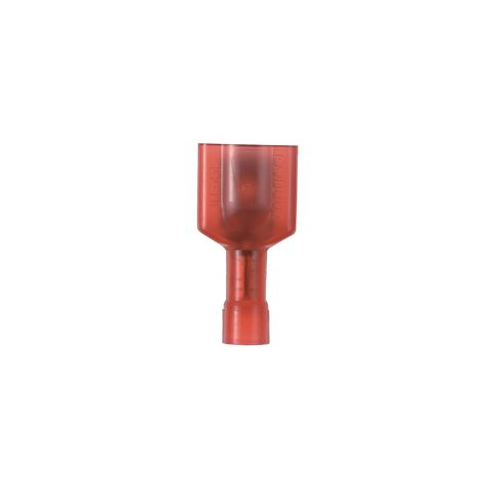

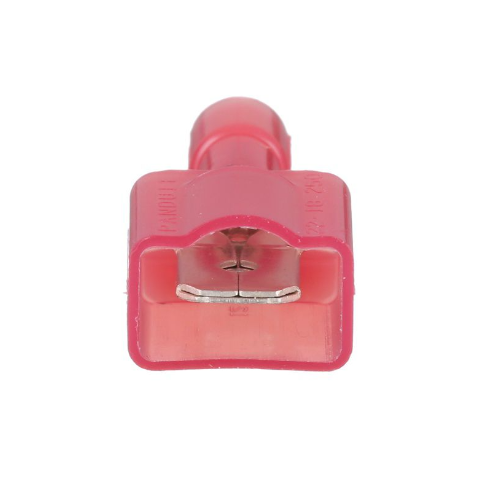

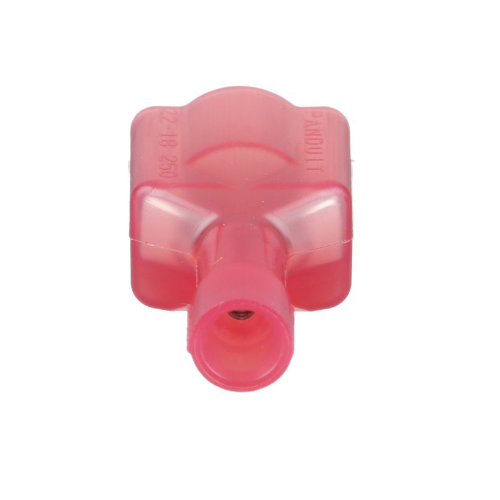

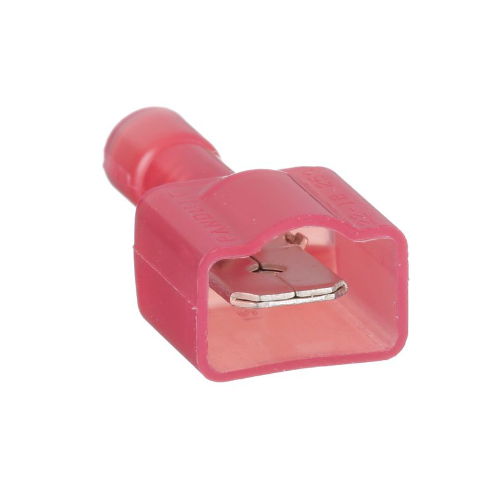

Pan-Term Male Disconnect Nylon Insulated

Product Information

Specification

About:

A Pan-Term Male Disconnect is a type of terminal used to establish electrical connections. Being nylon insulated ensures that the terminal is protected against short circuits and provides safety during its usage. The male disconnect design allows for easy connection and disconnection, making it a versatile choice for various electrical applications.

Also Known As:

• Quick disconnect
• Male spade terminal
• Slide-on connector
• Faston connector
• Push-on terminal

Common Applications:

• Automotive Systems: Used in vehicles for connections to lights, radios, controls, and more.
• Household Appliances: Found in devices like ovens, washing machines, and refrigerators.
• Electronics: Used in assemblies and devices requiring quick, detachable connections.
• Industrial Machinery: In machinery control panels or places where frequent connection/disconnection is required.
• Power Distribution: For connecting power sources to devices or equipment.

Standards Met:

Without specific data, we can guess typical standards:
• RoHS (Restriction of Hazardous Substances) for environmental safety.
• UL (Underwriters Laboratories) for safety and reliability.
• CE marking for products compliant within the European Economic Area.
• Possibly others depending on the specific model and its applications.

Construction:

• Metallic Core: Typically composed of a conductive metal like brass or tin-plated copper for good electrical conductivity.
• Nylon Insulation: This external insulation layer protects against short circuits and provides a degree of environmental protection.
• Color-Coding: Some terminals have colored insulation to denote wire size or connection type compatibility.

Features:

• Nylon Insulation: Ensures protection against short circuits and external elements.
• Quick Disconnect Design: Facilitates easy and secure connection and disconnection without the need for soldering or specialized tools.
• Compatibility with Various AWG Wires: Depending on the model, it could be compatible with a range of wire sizes.
• Durable Construction: Often designed to withstand vibrations, temperature fluctuations, and other environmental factors.
