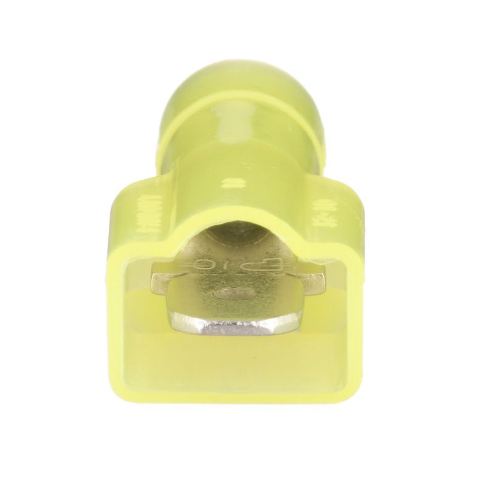

12-10 AWG Pan-Term Male Disconnect Nylon Insulated DNF10-250FIMB-Q (Pack of 25)

Product Information

Specification

About:

This is a male disconnect terminal designed for wire sizes between 12 to 10 AWG (American Wire Gauge). It's insulated with nylon for safety and durability. Typically, these types of connectors are used to create quick disconnects in electrical wiring. The product code "DNF10-250FIMB-Q" provides specific information about the terminal's features and specifications.

Also Known As:

• Quick disconnect
• Male spade terminal
• Slide-on connector

Common Applications:

• Industrial machinery wiring
• Home electrical projects
• Automotive wiring
• Electrical repairs and maintenance
• Control panels
• HVAC installations

Standards Met:

UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153

Construction:

• Terminal: Brass or copper (often tin-plated for better conductivity and resistance to corrosion)
• Insulation: Nylon (for protection against shorts and provides a grip for installation)
• Connection type: Crimp (ensures a secure mechanical and electrical connection)

Features:

• Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
• Fully insulated design provides protection from electrical shorts
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Internal barrel serrations assure good wire contact and maximum tensile strength
• UL and CSA rated up to 600 V per UL 310
• Coupler, male, and female parts sold separately
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
