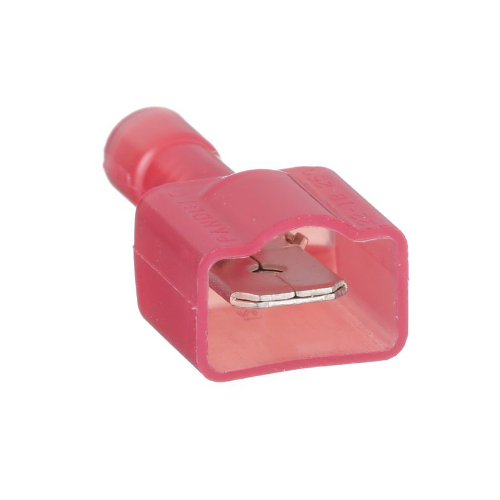

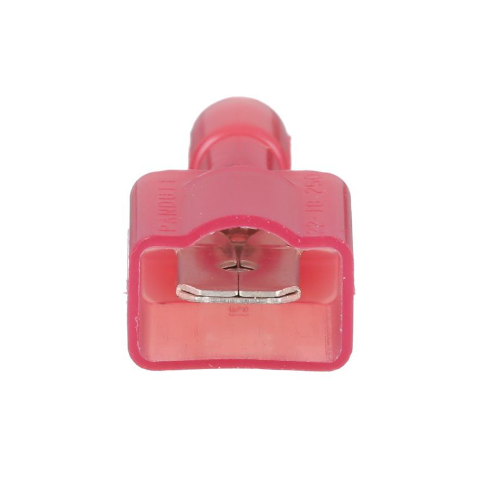

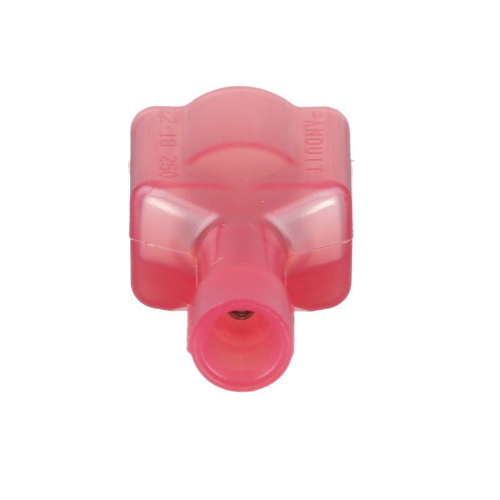

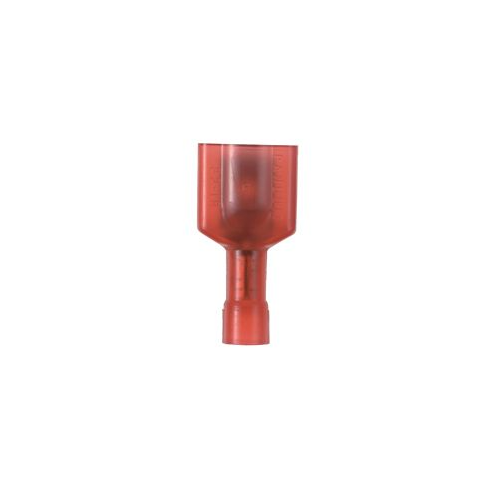

22-18 AWG Pan-Term Male Disconnect Nylon Insulated DNF18-250FIMB-D (Pack of 500)

Product Information

Specification

About:

This product is a pack of 500 male disconnect terminals designed for wire sizes ranging from 22 to 18 AWG (American Wire Gauge). Being nylon insulated, they ensure a safe and secure electrical connection, minimizing the risk of short circuits. These terminals belong to the Pan-Term series.

Also Known As:

• Quick disconnect terminals
• Male spade terminals
• Slide-on connectors
• Faston connectors
• Push-on terminals

Common Applications:

• Automotive Systems: Used in car and truck electrical systems, connecting components like lights, radios, or alarms.
• Household Appliances: Found in machines and devices such as microwaves, washing machines, toasters, and refrigerators.
• Electronics Assemblies: Useful for projects or products that require easily detachable connections.
• Industrial Equipment: For machinery or control panels that might require regular maintenance or checks.
• Power Distribution: Connecting power to devices or machines in a way that allows for easy disconnection.

Standards Met:

UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153

Construction:

• Metallic Core: Typically, the core of such terminals is made of a conductive metal, like brass or tin-plated copper, ensuring a solid electrical connection.
• Nylon Insulation: An external layer that provides protection against short circuits, environmental factors, and accidental contact.
• Color-Coding: These terminals might be color-coded (often red for 22-18 AWG) to help users identify their compatibility quickly.

Features:

• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Fully insulated design provides protection from electrical shorts
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
• Coupler, male, and female parts sold separately
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 310
