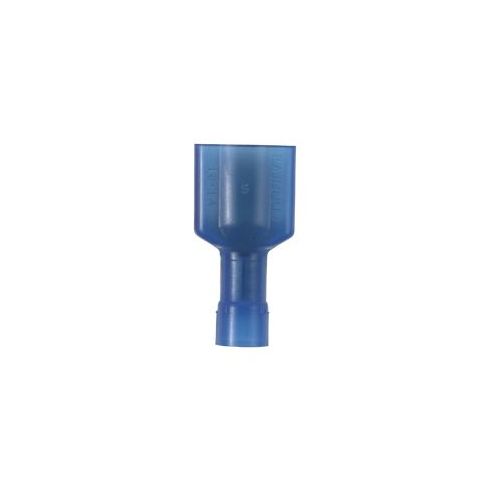

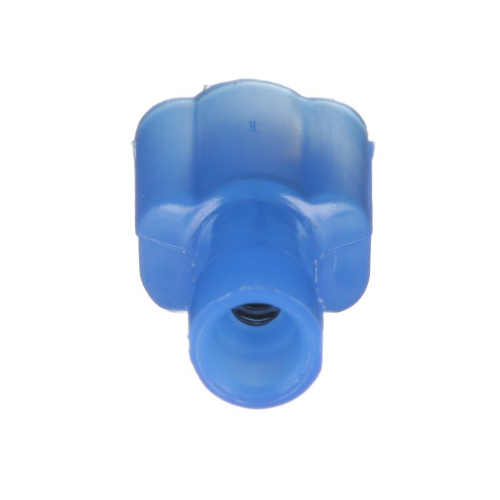

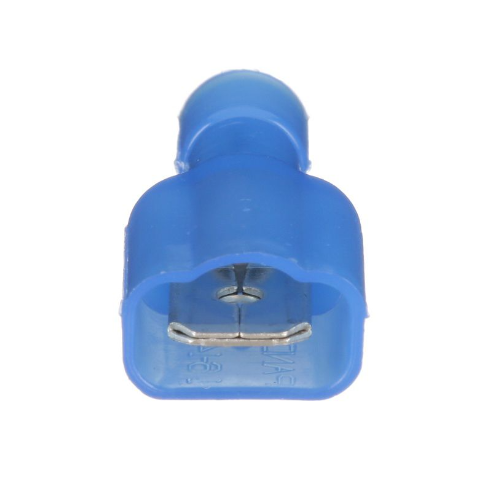

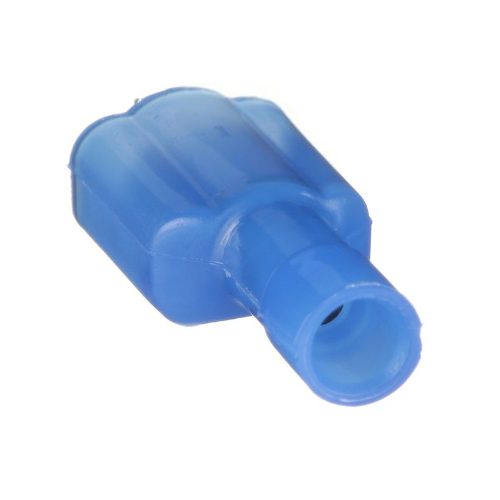

16-14 AWG Pan-Term Male Disconnect Nylon Insulated DNF14-250FIM-M (Pack of 1000)

Product Information

Specification

About:

This product is a pack of 1000 male disconnect terminals designed for wire sizes in the range of 16 to 14 AWG (American Wire Gauge). These terminals are nylon insulated, which ensures safety and prevents short circuits. The specific model is DNF14-250FIM-M, and it belongs to the Pan-Term series.

Also Known As:

These types of terminals can also be referred to as quick disconnect terminals, male spade terminals, slide-on connectors, faston connectors, or push-on terminals.

Common Applications:

Male disconnect terminals like these find usage in a variety of applications, including:

• Automotive Systems: Used in vehicles for connecting components such as lights, radios, and sensors.
• Household Appliances: Found in appliances like ovens, washing machines, dryers, and refrigerators.
• Electronics Assemblies: These terminals are often used in electronics and electrical assemblies.
• Control Panels: Frequently used in industrial control panels where wiring needs to be easily connected and disconnected for maintenance or repairs.
• General Electrical Wiring: Suitable for various applications where secure and detachable electrical connections are required.

Standards Met:

UL 310, CSA 22.2 No.153

Construction:

These terminals typically feature the following construction:

• Metallic Core: The core of the terminal is often made from a conductive metal like brass or tin-plated copper, ensuring a reliable electrical connection.
• Nylon Insulation: An outer layer of nylon insulation provides protection against short circuits and environmental factors.
• Color-Coding: The insulation may be color-coded (for example, blue for 16-14 AWG) to indicate wire size compatibility.

Features:

• Internal barrel serrations assure good wire contact and maximum tensile strength
• Fully insulated design provides protection from electrical shorts
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Coupler, male, and female parts sold separately
• Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
• UL and CSA rated up to 600 V per UL 310
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
