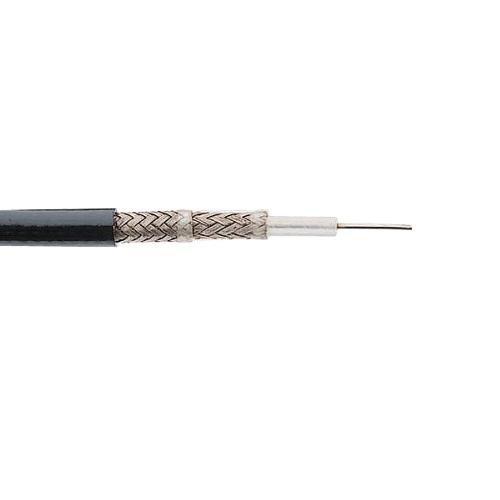

M17/92-RG115 34 AWG 1C Armored Non-Lowsmoke Solid Polyethylene Dielectric Core Silver-Coated Copper Wire TC 2000V Coaxial Cable

M17/92-RG115 34 AWG 1C Armored Non-Lowsmoke Solid Polyethylene Dielectric Core Silver-Coated Copper Wire TC 2000V Coaxial Cable

Application:

• Non-Low Smoke Radio Frequency For Naval Shipboard.
• These Cables Have Excellent Abrasion Characteristics, And Low Smoke, Zero Halogen, And Low Toxicity Properties.

Also Known As:

M17 Wire, Non-Low Smoke Cable, Dielectric Cable, Coaxial Cable, MIL-DTL-17 Cable, Military Cable.

Allowable Ampacity for M17/92-RG115 34 AWG 1C Armored Non-Lowsmoke Solid Polyethylene Dielectric Core Silver-Coated Copper Wire TC 2000V Coaxial Cable: 100 Amps

Construction:

Inner conductor:

• Seven strands of silver-coated, copper wire .028 inch each.
• Overall diameter: .084 inch ± .001

Dielectric core:

• Type F-2:
• Diameter: .255 inch ± .005

Outer Conductor:

• Double braid of AWG 34, silver-coated, copper wire.
• Diameter: .325 inch maximum

Inner braid:

• Coverage: 91.8% nominal
• Carriers: 24
• Ends: 6
• Picks/inch: 14.0% ± 10

Outer braid:

• Coverage: 91.9% nominal
• Carriers: 24
• Ends: 6
• Picks/inch: 15.5% ± 10

Barrier tapes:

• Type FF-2: Two wraps of PTFE tape, .005 inch thick each, by 1-inch wide. Each wrap of
• PTFE tape is to be applied with a 50% minimum overlap

Jacket:

• M17/92-RG115 type V. Three braids. Diameter: .415 inch ± .015.
• M17/92-00001 type FEP. Diameter: .344 ± .010 applied directly over outer braid, barrier tapes not required.

Specification :

• Size: 34 AWG
• Temp Range: -67 +392 Fahrenheit
• Temp Range: -55 +200 Celsius
• Max Operating Voltage VRMS: 5000
• Impedance Ohm VP: 50 +/- 2%
• Capacitance: 32 Pf/Ft
• Test Frequency: .05 – 12.4 GHz Swept
• Weight: 0.19425 lbs
• Shields: 34SC:34SC 0.325 Inches
• Conductor: SC 7/0.0280 0.084 inches
• Jacket O.D.: 0.415
• Armor O.D.: N/A
• Jacket Material: FG-Braid V
• Dielectric: Taped PTFE .255 Inches
• Part Number: M17/92-RG115
