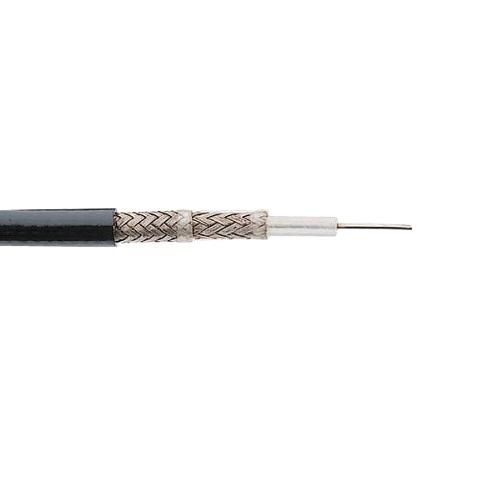

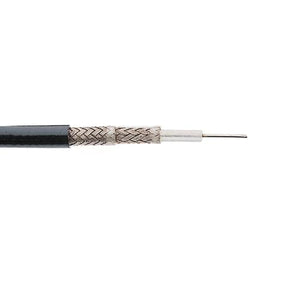

M17/126-RG391 34 AWG 1C Non-Lowsmoke Solid Polyethylene Dielectric Core Tinned Copper Wire TC 2000V Coaxial Cable

M17/126-RG391 34 AWG 1C Non-Lowsmoke Solid Polyethylene Dielectric Core Tinned Copper Wire TC 2000V Coaxial Cable

Application:

• Non-Low Smoke Radio Frequency For Naval Shipboard.
• These Cables Have Excellent Abrasion Characteristics, And Low Smoke, Zero Halogen, And Low Toxicity Properties.

Also Known As:

M17 Wire, Non-Low Smoke Cable, Dielectric Cable, Coaxial Cable, MIL-DTL-17 Cable, Military Cable.

Allowable Ampacity for M17/126-RG391 34 AWG 1C Non-Lowsmoke Solid Polyethylene Dielectric Core Tinned Copper Wire TC 2000V Coaxial Cable: 100 Amps

Construction:

Inner conductor:

• Seven strands of tinned, copper wire. Each strand is .0159 inch diameter.
• Overall diameter: 0.0477 inch ± 0.0020

Dielectric core:

• Composit Of Three Layers
• Diameter: 0.295 inch ± 0.007
• Inner Layer: Type: A-5 SemiConducting Polyethylene 0.003 nominal Inches
• Outer Layer: Type: A-5 SemiConducting Polyethylene 0.005 nominal Inches

Outer Conductor:

• Single Braid Of AWG 34 Tinned Copper Wire
• Diameter: 0.295 inch ± 0.007
• Coverage: 97.7%, nominal
• Carriers: 24
• Ends: 7
• Picks/inch: 16.3 ± 10%

Jacket:

• Type IIa
• Diameter: 0.405 inch ± 0.010

Specification :

• Size: 38 AWG
• Temp Range: -40 +185 Fahrenheit
• Temp Range: -40 +85 Celsius
• Max Operating Voltage VRMS: 5000
• Impedance Ohm VP: 72 +/- 3%
• Capacitance: 23 Pf/Ft
• Test Frequency: 1 GHz Unswept
• Weight: 0.105 lbs
• Shields: 34TC 0.340 Inches
• Conductor: TC 7/.0159 .0477 inches
• Jacket O.D.: 0.405
• Armor O.D.: N/A
• Jacket Material: PVC-IIA
• Dielectric: CPE & PE .295 Inches
• Part Number: M17/126-RG391
