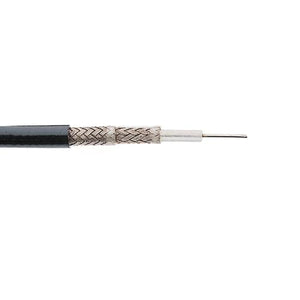

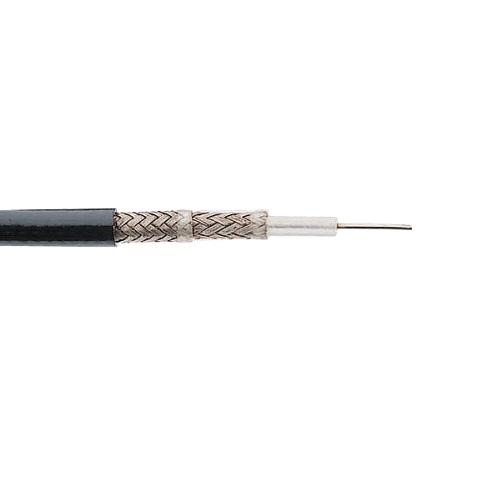

M17/52-00001 33 AWG 1C Non-Lowsmoke Solid Polyethylene Dielectric Core Bare Copper Wire TC 2000V Coaxial Cable

M17/52-00001 33 AWG 1C Non-Lowsmoke Solid Polyethylene Dielectric Core Bare Copper Wire TC 2000V Coaxial Cable

Application:

• Non-Low Smoke Radio Frequency For Naval Shipboard.
• These Cables Have Excellent Abrasion Characteristics, And Low Smoke, Zero Halogen, And Low Toxicity Properties.

Also Known As:

M17 Wire, Non-Low Smoke Cable, Dielectric Cable, Coaxial Cable, MIL-DTL-17 Cable, Military Cable.

Allowable Ampacity for M17/52-00001 33 AWG 1C Non-Lowsmoke Solid Polyethylene Dielectric Core Bare Copper Wire TC 2000V Coaxial Cable: 100 Amps

Construction:

Inner conductor:

• Solid, bare, copper wire.
• Diameter: .1019 inch ± .0020

Dielectric core:

• Type F-1: Solid, extruded PTFE
• Diameter: .332 inch ± .005.

Outer Conductor:

• Double braid of bare, copper wire. 1/
• Diameter: 0.414-inch maximum

Inner braid:

• Gauge: AWG No. 33
• Coverage: 97.7% nominal
• Carriers: 24
• Ends: 10
• Picks/inch: 5.4% ± 10

Outer braid:

• Gauge: AWG No. 34
• Coverage: 91.1% nominal
• Carriers: 24
• Ends: 8
• Picks/inch: 10.6% ± 10

Barrier tapes:

Type FF-2: Two wraps of PTFE tape, .005 ± .0005 inch thick each, by 1 to 1-1/4
inch wide. Each wrap of PTFE tape is to be applied with a 50% minimum overlap.

Jacket:

• Type V: Double braid.
• Diameter: .465 inch ± .010.

Specification :

• Size: 38 AWG
• Temp Range: -67 F + 392 F Fahrenheit
• Temp Range: -55 +200 Celsius
• Max Operating Voltage VRMS: 6000
• Impedance Ohm VP: 50 +/- 2%
• Capacitance: 29.3 Pf/Ft
• Test Frequency: .05 – 1 GHz Swept
• Weight: 0.2394 lbs
• Shields: 33SC:34SC 0.414 Inches
• Conductor: BC .1019 inches
• Jacket O.D.: 0.465
• Armor O.D.: N/A
• Jacket Material: FG-Braid V
• Dielectric: PTFE .332 Inches
• Part Number: M17/126-RG391
