48 Fiber OFNR OS2 Singlemode TB Indoor/Outdoor Fiber Optic Cable Black W3048K101

Product Information

Specification

About:

The Dry Block, Sunlight Resistant Indoor/Outdoor, Tight Buffer Riser-Rated Cable line offers the system designer the ultimate in premises optical fiber cable utility. These cables can be installed in open spaces, trays, conduits, inner-ducts, trenches, steam tunnels and building riser locations. These cables incorporate the latest in dry water-blocking technology. This system of water blocking eliminates the need to clean off the traditional gel-based water-blocking compounds found in loose tube cables.

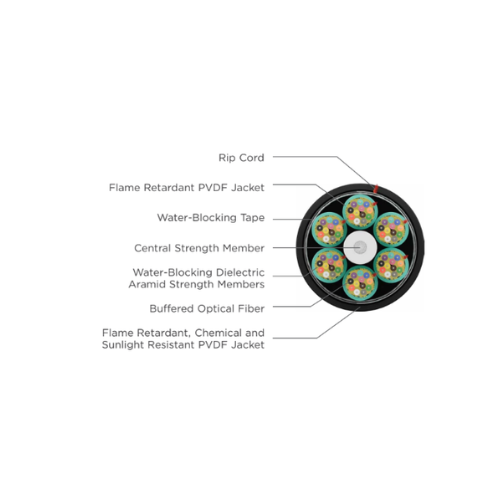

36–144 Fiber Multi-Unit Configuration: Dry water-blocked 12-fiber sub-units are grouped to form cable core; core consists of sub-units cabled with additional strength members and water-blocking elements

Also Known as:

Sunlight Resistant Cable, Sunlight Resistant Fiber Cable, 48 Fiber Sunlight Resistant Cable, 48 Fiber SM Cable, Singlemode G.657.A1, TeraFlex Bend Resistant, Dry Block Riser Cable, Non-Plenum Fiber Cable.

Applications:

• Intra/inter-building backbones
• Trench/conduit/duct/tray pathways
• Dry or wet locations

Benefits:

• Contributes toward 1 LEED point under the Material and Resources credit (MRc)
• Future-proof fiber performance for current and future multi- gigabit applications
• Cable integrity maintained even if damage occurs to protective layers
• Eliminates the need to purchase separate cables for OSP and indoor/riser applications

Features:

• UL Certified Environmental Product Declaration (EPD)
• Health Product Declaration
• Exceeds ANSI/TIA-568.3-D optical performance
• Dry-block design meets ICEA 696 water-block requirements
• 900 μm tight-buffered fibers
• All dielectric
• Jacket rip cord

Specifications:
