Product Information


4 AWG Battery Cable SGT 105C


The SGT battery cable is an electrical wire that is used in cars, busses, boats, trucks, tractors, and RV’s, particularly between the grounding and battery terminal and starter. The operating temperature range of this battery wire is up to 105°C, and this electrical wire has a voltage rating of 60V.

Also Known As:

4 gauge battery cable, 4 car battery cable, 4 awg battery wire, 4 sgt cable, 4 awg sgt battery cable, 4 awg sae j1127 type sgt, 4 gauge sae j1127 sgt type 2 60v.


  • • SAE J1127
  • • UL 558
  • • RoHS compliance

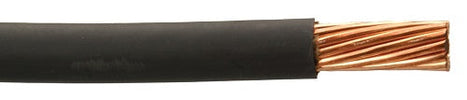

This battery cable conductor is made of stranded copper. Copper is used for this application because of its amazing electrical properties and flexibility.


Insulation is very important in any electrical cable since it prevents the electrocution of cable handlers. This automotive cable’s insulation is made of PVC.


  • Gauge: 4
  • Stranding: 7/19/.0170
  • Insul. Thickness (inches): 0.065
  • Nom. O.D. (inches): 0.375
  • Approx. Weight (lbs/1000 ft): 153

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
