1 AWG Battery Cable SGT 105C

1 AWG Battery Cable SGT 105C

1 AWG Battery Cable SGT 105C

SKU: NNC1586X

Availability: In stock

Min Length: 1 FT
Max Length: 1000000 FT
Price:
Regular price
$2.38 /FT
Sale price
$2.38 /FT
Shipping cost calculated at Checkout. Standard lead time is 1 to 6 business days.
Quantity must be 1 or more

Enter the required footage in the Quantity box

our commitment

global shipping
verified suppliers
A+ Rated
payments types accepted
See all »

Product Information

Specification

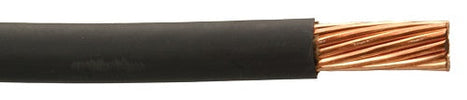

1 AWG Battery Cable SGT 105C

Applications:

The SGT battery cable is an electrical wire that is used in cars, busses, boats, trucks, tractors, and RV’s, particularly between the grounding and battery terminal and starter. The operating temperature range of this battery wire is up to 105°C, and this electrical wire has a voltage rating of 60V.

Also Known As:

1 gauge battery cable, 1 car battery cable, 1 awg battery wire, 1 sgt cable, 1 awg sgt battery cable, 1 awg sae j1127 type sgt, 1 gauge sae j1127 sgt type 2 60v.

Standards:

  • • SAE J1127
  • • UL 558
  • • RoHS compliance

Construction

Conductors:

This battery cable conductor is made of stranded copper. Copper is used for this application because of its amazing electrical properties and flexibility.

Insulation:

Insulation is very important in any electrical cable since it prevents the electrocution of cable handlers. This automotive cable’s insulation is made of PVC.

Specifications:

  • • Gauge: 1
  • • Stranding: 7/19/.0243
  • • Insul. Thickness (inches): 0.065
  • • Nom. O.D. (inches): 0.480
  • • Approx. Weight (lbs/1000 ft): 308


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
