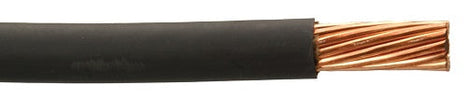

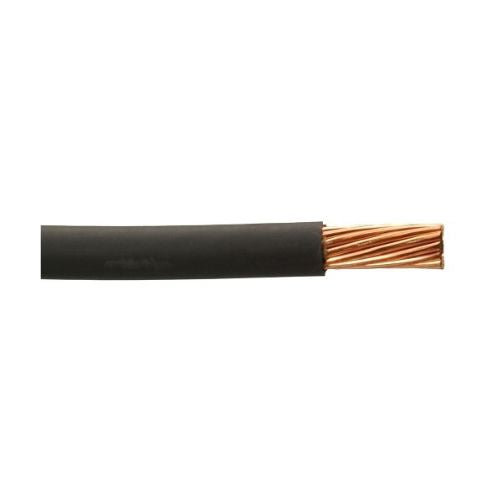

1/0 AWG Battery Cable SGT 105C | Nassau Cable

Items in Cart ()

View cart

1/0 AWG Battery Cable SGT 105C

1/0 AWG Battery Cable SGT 105C
Roll over image to Zoom
1/0 AWG Battery Cable SGT 105C
Roll over image to Zoom

1/0 AWG Battery Cable SGT 105C

SKU: NNC1587X

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
Regular price
$4.42
Sale price
$3.35 /FT 24% off
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tim
Quality cable at a fair price

They sent me longer cable lengths than I paid for. It is great quality cable and perfect for running a remote battery in an old school street rod.

G
Garth Burch Sr
Good

The wire is as expected. Correct length my only concern is the cost of shipping. To get a better price sometimes you got to bite the bullet.

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

1/0 AWG Battery Cable SGT 105C

Applications:

The SGT battery cable is an electrical wire that is used in cars, busses, boats, trucks, tractors, and RV’s, particularly between the grounding and battery terminal and starter. The operating temperature range of this battery wire is up to 105°C, and this electrical wire has a voltage rating of 60V.

Also Known As:

1/0 gauge battery cable, 1/0 car battery cable, 1/0 awg battery wire, 1/0 sgt cable, 1/0 awg sgt battery cable, 1/0 awg sae j1127 type sgt, 1/0 gauge sae j1127 sgt type 2 60v.

Standards:

  • • SAE J1127
  • • UL 558
  • • RoHS compliance

Construction

Conductors:

This battery cable conductor is made of stranded copper. Copper is used for this application because of its amazing electrical properties and flexibility.

Insulation:

Insulation is very important in any electrical cable since it prevents the electrocution of cable handlers. This automotive cable’s insulation is made of PVC.

Specifications:

  • • Gauge: 1/0
  • • Stranding: 19/7/.0275
  • • Insul. Thickness (inches): 0.065
  • • Nom. O.D. (inches): 0.525
  • • Approx. Weight (lbs/1000 ft): 383


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Download PDF Spec Sheet
