0.23 22-18 AWG Pan-Term Female Disconnect Nylon Barrel Insulated DNF18-187-C (Pack of 100)

Product Information

Specification

About:

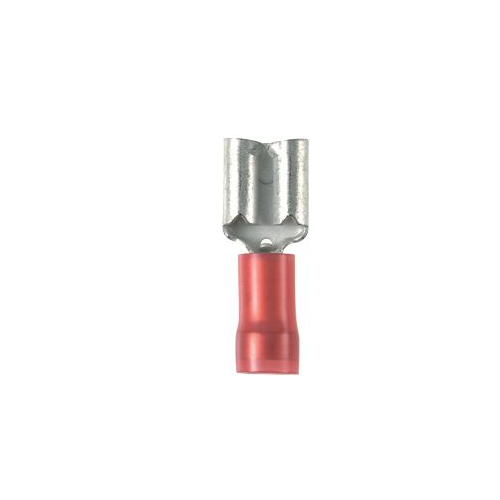

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.

Also Known As:

• DNF18 Series Slip-On Terminal

• 22-18 AWG Quick Disconnect Terminal

• DNF18-187-C Nylon-Insulated Female Disconnect

Common Applications:

• Industrial control panels and machinery wiring.

• Automotive wiring for speakers, radios, and other components.

• Electrical connections in household appliances.

• Any application requiring a quick and insulated connection for 22-18 AWG wires.

• Electronics assembly.

Standards:

• RoHS Compliant

• UL Recognized

• CSA Certified

Construction:

• Insulation: Made from durable nylon, offering good resistance to heat, chemicals, and mechanical wear.

• Plating: Often tin-plated to enhance conductivity and provide protection against oxidation.

• Terminal Body: Typically made of high-quality brass or copper, ensuring good electrical conductivity and resistance to corrosion.

Features:

• Secure Connection: Tailored to provide a snug and reliable connection when paired with the appropriate male disconnect.

• Durable Insulation: The nylon insulation offers added protection against potential short circuits and enhanced safety.

• Color-coded: Red color coding for 22-18 AWG wire gauge size, ensuring the correct terminal is chosen for the corresponding wire size.

• Easy Crimping: Designed for straightforward and robust crimping with standard tools.
