0.08 22-18 AWG Pan-Term Female Disconnect Nylon Barrel Insulated DNF18-110-C (Pack of 100)

Product Information

Specification

About:

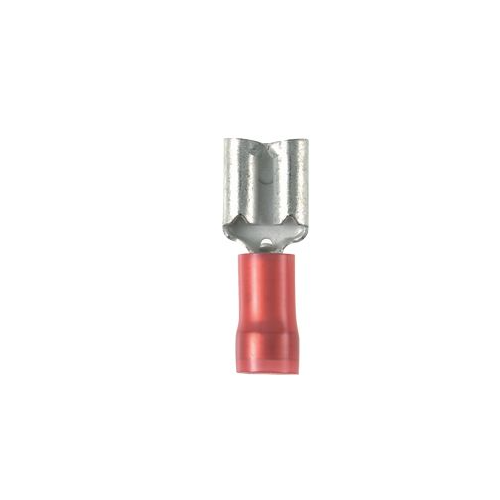

This vibration-resistant female disconnect is crafted from brass with a tin-plated finish, ensuring durability and resistance to corrosion. It features a red nylon housing that provides effective barrel insulation.

Designed for compatibility with tab sizes of 0.110 x 0.032 inches (2.8 x 0.8 mm), it supports wire ranges of 22 to 18 AWG (0.5 to 1.0 mm²). The disconnect measures 0.69 inches (17.5 mm) in length and 0.15 inches (3.8 mm) in width. It includes a funnel entry barrel configuration and an insulation grip sleeve barrel for easy wire insertion and a secure, stable connection. Each bottle contains 100 disconnects, making it suitable for various applications and installations.

Also Known As:

• 22-18 AWG Quick Disconnect Terminal

• DNF18 Series Slip-On Terminal

• DNF18-110-C Nylon-Insulated Female Disconnect

Common Applications:

• Industrial control panels and machinery wiring.

• Automotive wiring for speakers, radios, and other components.

• Electrical connections in household appliances.

• Any application requiring a quick and insulated connection for 22-18 AWG wires.

• Electronics assembly.

Standards:

• UL Recognized

• RoHS Compliant

• CSA Certified

Construction:

• Terminal Body: Typically made of high-quality brass or copper, ensuring good electrical conductivity and resistance to corrosion.

• Insulation: Made from durable nylon, offering good resistance to heat, chemicals, and mechanical wear.

• Plating: Often tin-plated to enhance conductivity and provide protection against oxidation.

Features:

• Easy Crimping: Designed for straightforward and robust crimping with standard tools.

• Durable Insulation: The nylon insulation offers added protection against potential short circuits and enhanced safety.

• Color-coded: Red color coding for 22-18 AWG wire gauge size, ensuring the correct terminal is chosen for the corresponding wire size.

• Secure Connection: Tailored to provide a snug and reliable connection when paired with the appropriate male disconnect.
