0.08 16-14 AWG Pan-Term Female Disconnect Nylon Barrel Insulated DNF14-110-M (Pack of 1000)

Product Information

Specification

About:

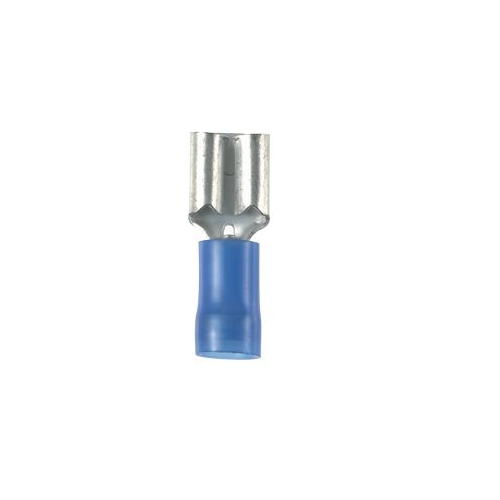

This vibration-resistant female disconnect is engineered for durability and reliable electrical connections. Constructed from brass with a tin-plated finish, it is designed to withstand vibrations while preventing corrosion. It features a blue nylon housing that provides effective insulation.

The disconnect accommodates tab sizes of 0.110 x 0.032 inches (2.8 x 0.8 mm) and supports wire gauges ranging from 16 to 14 AWG (1.5 to 2.5 mm²). It measures 0.75 inches (19.1 mm) in length and 0.15 inches (3.8 mm) in width. The funnel entry barrel configuration and insulation grip sleeve barrel ensure ease of wire insertion and a secure connection. This disconnect is packaged in boxes of 1000, ideal for large-scale or bulk electrical projects.

Also Known As:

• 16-14 AWG Quick Disconnect Terminal

• DNF14 Series Slip-On Terminal

• DNF14-110-M Nylon-Insulated Female Disconnect

Common Applications:

• Any application requiring a quick and insulated connection for 16-14 AWG wires.

• Automotive wiring for speakers, radios, and other components.

• Industrial control panels and machinery wiring.

• Electronics assembly.

• Electrical connections in household appliances.

Standards:

• UL Recognized

• RoHS Compliant

• CSA Certified

Construction:

• Terminal Body: Typically made of high-quality brass or copper, ensuring good electrical conductivity and resistance to corrosion.

• Insulation: Made from durable nylon, offering good resistance to heat, chemicals, and mechanical wear.

• Plating: Often tin-plated to enhance conductivity and provide protection against oxidation.

Features:

• Easy Crimping: Designed for straightforward and robust crimping with standard tools.

• Durable Insulation: The nylon insulation offers added protection against potential short circuits and enhanced safety.

• Color-coded: Red color coding for 16-14 AWG wire gauge size, ensuring the correct terminal is chosen for the corresponding wire size.

• Secure Connection: Tailored to provide a snug and reliable connection when paired with the appropriate male disconnect.
