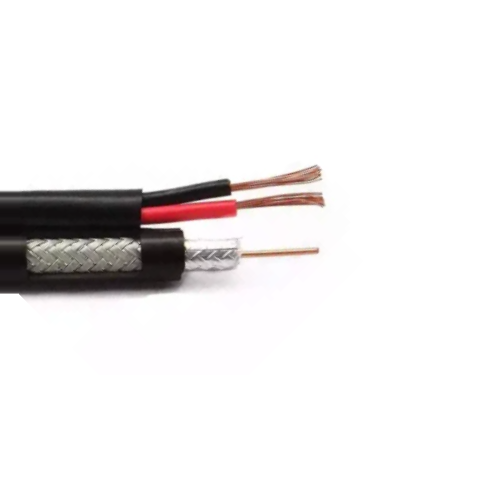

Wavenet H59+182PWH2 20/1 Solid RG59 18/2 BC Siamese Unshielded CMP Coaxial Power Cable

Name: Wavenet H59+182PWH2 20/1 Solid RG59 18/2 BC Siamese Unshielded CMP Coaxial Power Cable
Brand: Wavenet
SKU: wavenet-h59-182pwh2-20-1-solid-rg59-18-2-bc-siamese-unshielded-cmp-coaxial-power-cable
Availability: InStock
Rating: 4.91 (8287 reviews)

Roll over image to Zoom

Write a Review

Ask a Question Download PDF Buyer Guide

SKU:

Price:

Regular price: $0.00 /Qty
Sale price: $0.00 /Qty

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Free Shipping: On orders above $1000

Spool

Color

Qty:

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Wavenet H59+182PWH2 20/1 Solid RG59 18/2 BC Siamese Unshielded CMP Coaxial Power Cable

Allowable Ampacity for Wavenet H59+182PWH2 20/1 Solid RG59 18/2 BC Siamese Unshielded CMP Coaxial Power Cable: 100 Amps

Applicable Standards:

•RG59/U 95% Copper Braid CATV 75 Ω Coaxial Cable
•Reference Standard SCTE IPS-SP-001 / UL 1655, UL 13, UL 444, RoHS

Also Known as:

Coaxial Cable, Wavenet Cable, CCTV Cable, RG59/U Cable, RG Cable, Power Cable

Colors:

White

Package:

⦁ 1000ft / Reel

Specification:

AWG Size: 20
Number of Conductor: 1
Conductor: Bare Copper
Diameter: 0.033 (inches)
Insulation Material: Foam FEP
Insulation Diameter: 0.135 (inches)
Braid Shield: C.C.A
Coverage Area: 95 (%)
Nom. Diameter: 0.154 (inches)
Jacket Material: Plenum
Nominal Thickness: 0.200 (inches)
Cable Diameter: 0.020 (inches)
AWG Size: 18
Number of Conductor: 2
Insulation Material: Plenum
Insulation Diameter: 0.060 (inches)
Core colors: 1. Black / 2. Red
Cable Diameter: 0.150 (inches)
Nominal Weight: 41 lbs.
Part Number: H59+182PWH2
