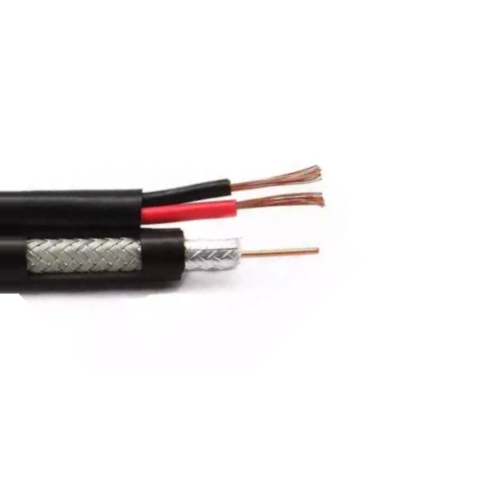

Wavenet H59+182JRXX2-SM 20/1 Solid CCS RG59 18/2 BC Siamese Unshielded CMR Coaxial Power Cable

Wavenet H59+182JRXX2-SM 20/1 Solid CCS RG59 18/2 BC Siamese Unshielded CMR Coaxial Power Cable

Allowable Ampacity for Wavenet H59+182JRXX2-SM 20/1 Solid CCS RG59 18/2 BC Siamese Unshielded CMR Coaxial Power Cable: 100 Amps

Applicable Standards:

•CCTV Combo Siamese Cable RG59 + 18/2 Power Cable
•Reference Standard NEC ARTICLE 800, UL444

Also Known as:

Coaxial Cable, Wavenet Cable, CCTV Cable, RG59/U Cable, RG Cable, Power Cable

Colors:

White, Black

Package:

⦁ 1000ft / Reel

Specification:

AWG Size: 20
Number of Conductor: 1
Conductor: Copper Clad Steel
Diameter: 0.813 mm
Insulation Material: Foam PE
Concentricity: 90 (%)
Insulation Diameter: 3.66 mm
Braid Shield: C. C. A.
Construction: 8*16*0.12mm
Coverage Area: 95 (%)
AWG Size: 18
Number of Conductor: 2
Conductor: Bare Copper
Construction: 7*0.38mm
Insulation Material: PE
Jacket Material: PVC
Nom. Thickness: 0.64 mm
Min. Thickness: 0.51 mm
Cable Diameter: 6.10 mm
Nominal Weight: 45 lbs.
Part Number: H59+182JRXX2-SM
