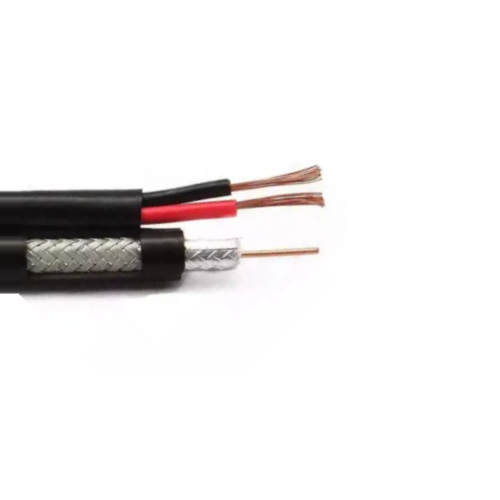

Wavenet H59+182PWH2 20/1 Solid CCS RG6 18/2 BC Siamese Unshielded CMP Coaxial Power Cable

Wavenet H59+182PWH2 20/1 Solid CCS RG6 18/2 BC Siamese Unshielded CMP Coaxial Power Cable
Roll over image to Zoom
Wavenet H59+182PWH2 20/1 Solid CCS RG6 18/2 BC Siamese Unshielded CMP Coaxial Power Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU:
wavenet-solid-ccs-bc-rg59-siamese-unshielded-coaxial-power-cable
Price:
$0.00 /Qty
$0.00 /Qty
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Wavenet H59+182PWH2 20/1 Solid CCS RG6 18/2 BC Siamese Unshielded CMP Coaxial Power Cable

Allowable Ampacity for Wavenet H59+182PWH2 20/1 Solid CCS RG6 18/2 BC Siamese Unshielded CMP Coaxial Power Cable: 100 Amps

Applicable Standards:

•CCTV Combo Siamese Cable RG6 + 18/2 Power Cable
•Reference Standard NEC ARTICLE 800, UL444

Also Known as:

Coaxial Cable, Wavenet Cable, CCTV Cable, RG59/U Cable, RG Cable, Power Cable

Colors:

Black, White

Package:

⦁ 1000ft / Reel

Specification:

AWG Size: 20
Number of Conductor: 1
Conductor: Copper Clad Steel
Diameter: 0.04 (inches)
Insulation Material: Skin Foamed PE
Nominal Thickness: 0.07007 (inches)
Insulation Diameter: 0.1799 (inches)
Braid Shield: C.C.A
Coverage Area: 95 (%)
Jacket Material: Plenum
Nominal Thickness: 0.0295 (inches)
Cable Diameter: 0.2696 (inches)
AWG Size: 18
Number of Conductor: 2
Conductor: Solid Bare Copper
Insulation Material: PE
Jacket Material: PVC
Nominal Thickness: 0.8 (inches)
Cable Diameter: 0.2358 (inches)
Nominal Weight: 40 lbs.
Part Number: H6+182JRXX2


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
